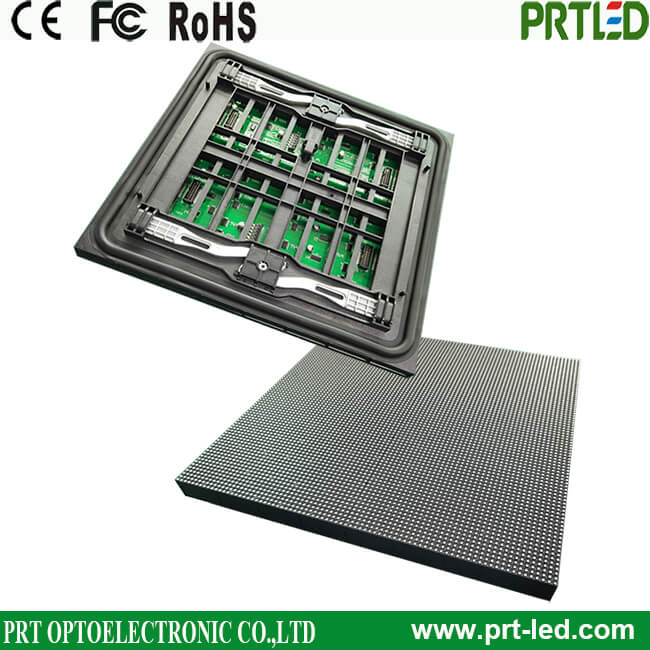

High Brightness Front Service LED Display Module of Outdoor P4 320x320mm

full color led display module outdoor P4 with front service,good waterproof and high brightness
Size:
Availability:
Quantity:
  • P4

  • PRTLED

  • 8528591090

 Outdoor P4 Full Color LED Module front service and module size 320 x320 mm
with good waterproof and high brightness,for outdoor permanent install or rental use


Product features:

1. SMD led encapsultion ensure wide view angle,good uniformity

2.Slim thickness and light weight, easy to move and transport,save package rooms and shipping cost

3. Nation star sealed 1921 small leds confirm high quality, high contrast ratio, high gray scale, perfect display vision

4.High brightness up to 6000nits/sq.m, good waterproof, used for outdoor to meet different weather condition

5. Dot to dot maintenance make repaireing easily and quickly, save much material cost and labour cost

6. Coverred with mask keep the lamps from impact,good protection

7. Front service available, save much back space for maintenance, better for wall mounting advertising


More pictures for good understanding:

outdoor-led-display 111
outdoor-led-display 124
Stage background for outdoor rental

High Brightness SMD1921 RGB LED Display Module of Outdoor P4 (256*128mm)
Ageing before delivery



P4 Outdoor full Color LED Screen Specification
Pixel pitch 4mm
Pixel Configuration 1R1G1B
LED component SMD1921
Size of module 320 mm x 320 mm
Resolution of module 80 x 80 dots
Size of cabinet 960 mm x 960mm x 110mm
Resolution of cabinet 240 x 240 dots
Material of Cabinet Die-casting Aluminum / steel iron
Weight of Cabinet 25 KGS
Brightness >6000cd/sq.m
Density 62500dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/10 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
