P16 Full Color Football Stadium Perimater LED Screen for Advertising

Quantity:
  • P16-DIP
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • Static Scan
  • Advertising,Rental
  • DIP 346
  • 16X16dots
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 16mm
  • Video Display
  • 3906DOT/Sq.M
  • LED Video Display
  • CE, RoHS, CCC
  • 256X128mm
  • 1024X1024mm
  • Wooden Case or as Required
  • Shenzhen China
  P16 Full Color LED  Screen for sport perimeter advertising,with high brightness ,long view distance,good waterproof, with good protection hat and soft mask, good performance but cheaper cost

Product Features:

1. DIP led encapsulation confirm the high brightness even under sunlight,anti-corrosion,antifogging,

2.Good waterproof IP65, with soft mask and bongrace, avoid from broken and to hurt people

3.Long view distance, High definition, Good uniformity

4. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically

5. Widely used for football, baketball, tennis, baseball field, to display score, live broadcasting games, and advertising

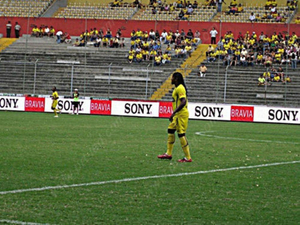

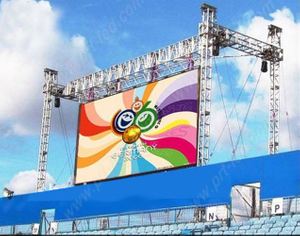

More picture for checking:


P16 Full Color Football Stadium Perimater LED Screen for Advertising

P16 Full Color Football Stadium Perimater LED Screen for Advertising

P16 Full Color Football Stadium Perimater LED Screen for Advertising
P16 Outdoor full Color LED Screen Specification
Pixel pitch 16mm
Pixel Configuration 1R1G1B
LED component DIP346(Epsitar chips)
Size of module 256mm x 256mm
Resolution of module 16x16
Size of cabinet 1024mmx 1024mm x 200mm
Resolution of cabinet 64x64
Material of Cabinet Iron with back doors
Weight of Cabinet <70KGS
Brightness >7500cd/sq.m
Density 3906dots/sq.m
Best viewing angle 110 /50
Best viewing distance 15-200M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method Static
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
