P2.5
PRT
8528591090

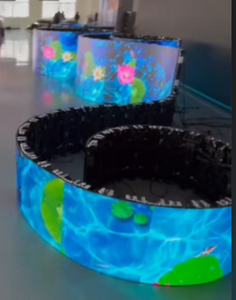

P2.5 led display panel with size 500 x 500mm,for indoor rental use,with angle adjuster for different curved screen shapes
Product Features:
1. Cabinet is made with Die-casting Aluminum material, strong and durable,long life time up to 100000hours
2. Light weight and super thin, less than 75mm thickness and only 8kgs per panel for 500x500mm
3. Rental design cabinet, can be fixed or hung,and easy to install and dismantle with fast lock and aviation plugs
4. Exquisite and tasteful appearance due to structural wire layout, with red/green intruction lights,and test click button
5. High refresh rate up to 3000Hz,and high contrast ratio of 5000:1,real and rich colors and perfect vision effect
6. Packed with flight case, convenient to be collected and transportation,better for rental use
7. This kind of cabinets are suit for outdoor or indoor pixel pitch 2.9mm, 3.91mm,4.81mm,5.95mm and 6.25mm,also can be with front and rear maintenance
P2.5 SMD2121 Indoor full Color LED Screen Specification | |
Pixel pitch | 2.5mm |
Pixel Configuration | 1R1G1B |
LED component | SMD1515 |
Size of module | 250mm x 250mm |
Resolution of module | 100 x 100dots |
Size of cabinet | 500x500x75mm |
Resolution of cabinet | 200x200 dots |
Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 8kgs/pc |
Brightness | <1200cd/sq.m |
Density | 65536dots/sq.m |
Best viewing angle | 140º /140º(Vertical/Horizontal) |
Best viewing distance | 2.5-30M |
Maximum power consumption | 1200W/sq.m |
Average power consumption | 640W/sq.m |
Driving method | 1/25 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 65536*65536*65536 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | —20℃~+50℃±10% |
Working humidity | 10％ ～ 90％ |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >1920Hz |
IP grade | IP31 |
Life Span | 100,000 hours |
Data transafer method | RJ45(1~100m) |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
