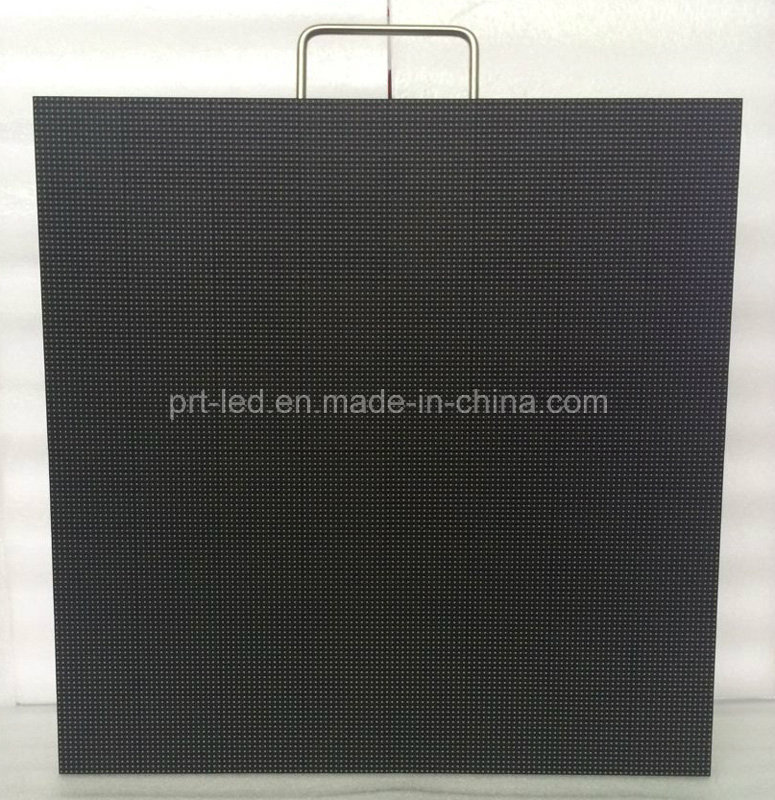

500X500MM Die-cast Aluminum LED Cabinet for indoor P3.91/P4.81/P5.68/P6.25,also for outdoor rental
Product Features:
1. SMD block lamp body ensure the high brightness and good quality
2. Made with Die-casting Aluminum material cabients,strong structure and light weight
3. Rental design with fast locks and aviation plugs,easy and quick to install and dismantle
4. Unique muting and fan free design ,good environment protection
5. Exquisite and tastful appearance due to structural wire layout
6. Back installation for drivers,benefical to maintenance
7. Widely used for banquet, conference,shows,exhibition etc.
The Cabinet design is available for P4.81, P3.91,P5.68 ,P5.95,P6.25,P8.928 indoor and outdoor
Indoor P3.91 Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 3.91 |
| Pixel Density | Dots/sq.m | 65536 |
| Pixel Configuration |
| SMD2121 |
| Cabinet Resolution | dots | 128x128 |
| Refresh Rate | Hz | ≥1920 |
| View Angle(H/V) | ° | 140/140 |
| Brightness | nits | ≥1200 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 43 |
| Power Consumption(Max/Avg) | W/sq.m | 600/200 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 500x500x80 |
| Cabinet Material |
| Die-casting Aluminum |
| Cabinet Weight | Kg | 10 |
| Module Size(W×H) | mm | 250×250 |
| Environment |
| Operation Temperature | ºC | -20~+50 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/16 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
