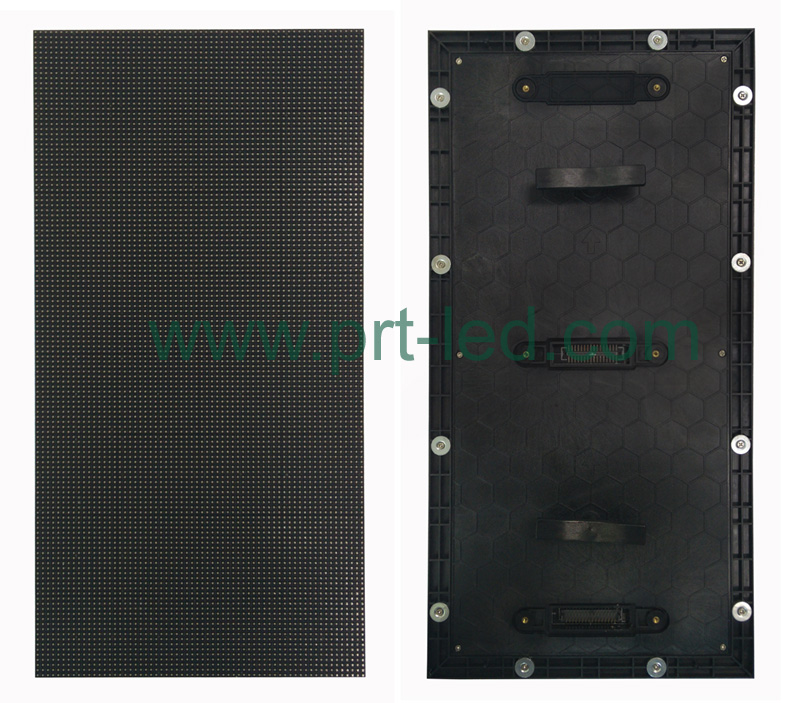

P3.91-IR100
Video Display
1R,1G,1B
1/16
LED Video Display
IP40
SMD2121
64X128dots
Die-Casting Aluminum
CE, FCC, Rohs
8528591090
Full Color
3.91mm
65536dots/Sq.M
Win XP,Win 2000,98,Nt
Stage Performance, Advertising, Shopping Guide
CE, RoHS, CCC, FCC
250X500mm
500X1000mm
PRT
Shenzhen China
C391S SPECIFICATIONS | ||
Physical Parameter | Pixel Configuration | SMD2121 black body(NATIONSTAR) |
Pixel Pitch (mm) | 3.91 | |
Pixel matrix per panel | 64x128 | |
Pixel density(pixels/sq.m.) | 65536 | |
Cabinet Dimensions (LxWxH)/(mm) | 500x1000x70 | |
Module Dimensions (LxWxH)/(mm) | 250x500 | |
Panel material | Aluminum-alloy | |
Cabinet weight (kg/panel) | 13.5 | |
Module weight (kg/panel) | 1.31 | |
Electronic Parameter | Color Grayscale (Bit) | 14 |
Gray Scale per Color (level) | 16384 | |
Refresh Rate(Hz) | ≥1200 | |
Driving Type | 1/16 | |
Optical Parameter | Brightness(nit) | 1200 |
Optimal Horizontal Viewing Angle(°) | 120 | |
Optimal Vertical Viewing Angle(°) | 120 | |
Electrical Parameter | AC Input Voltage(V) | AC220±10%(optional) |
AC Input Frequency(Hz) | 50 | |
AC Input Power Maximum Value(W/m²) | 520 | |
C Input Power Typical Value(W/m²) | 200 | |
Circumstanc e Parameter | Storage Temperature(ºC) | 40 - 60 |
Operating Temperature(ºC) | 0 - 40 | |
Storage Humidity(RH) | 10%~90% | |
IP rating (Front/Rear) | IP40/IP40 | |
Operating Humidity(RH) | 10%~90% | |
Lifetime Typical Value(hrs) | 100000 | |
Lifetime Typical Value (hrs) | Cabinet installation type | rental\fix |
