Full Color P6.25 Indoor Rental LED Display with 500X500mm Panel

Quantity:
  • P6.25-IR500
  • Video Display
  • 1R,1G,1B
  • 1/10 Scan
  • LED Video Display
  • IP43
  • SMD3528
  • 500X500mm
  • Indoor Rental
  • Wooden Case or as Required
  • Shenzhen China
  • Full Color
  • 6.25mm
  • 25600dots/Sq.M
  • Win XP,Win 2000,98,Win7/8/8
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, ETL
  • 250X250mm
  • Die-Casting Aluminum
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
P6.25 Indoor Full Color LED Display for indoor rental with cabinet size 500x500mm or 500x1000mm,high gray scale, good uniformity, competitive cost, 2years warranty,meet CE,FCC,Rohs international standard

Product Features:

1. SMD led encapsulation confirm wide view angle and good uniformity,eyes friendly,close view distance

2. Low power consumption,energy saving, long life span>100000Hours

3. Die-casting Aluminum cabinet ensure slim thickness and lightweight, only 7.8kgs per panel,can be picked up by one hand

4. With fast lock and aviation plugs,easy and quick to assemble without tools in short time

5. Low noise created, low transportation costs, and low installation costs.


6.Widely used for stage, concert ,show, banquet, wedding background,rental led display

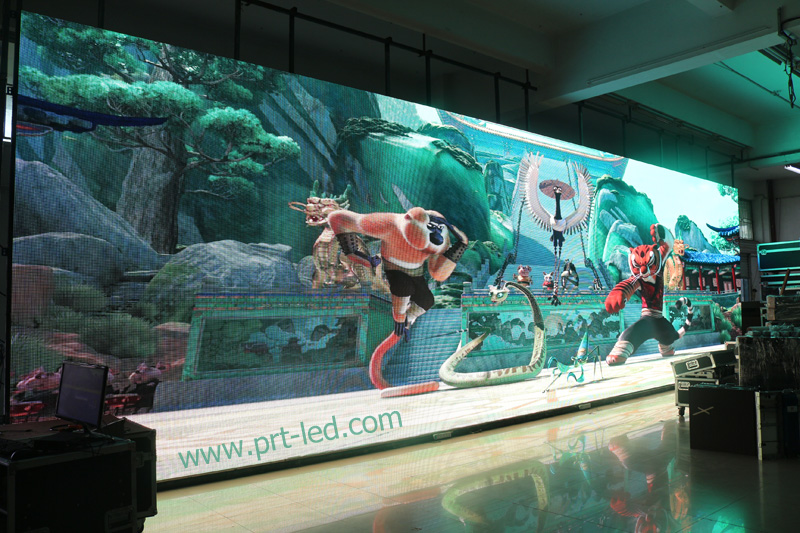

More pictures for reference:
Full Color P6.25 Indoor Rental LED Display with 500X500mm Panel

Full Color P6.25 Indoor Rental LED Display with 500X500mm Panel


Full Color P6.25 Indoor Rental LED Display with 500X500mm Panel
Full Color P6.25 Indoor Rental LED Display with 500X500mm Panel
Full Color P6.25 Indoor Rental LED Display with 500X500mm Panel
Full Color P6.25 Indoor Rental LED Display with 500X500mm Panel



P6.25  full Color LED Screen/Curtain Specification
Pixel pitch 6.25mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 250mm x 250mm
Resolution of module 40x40
Size of cabinet 500mm x 500mm x 75mm
Resolution of cabinet 80x160
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 7.8KGS
Brightness >1500cd/sq.m
Density 25600dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 6-80M
Maximum power consumption 800W/sq.m
Average power consumption 250W/sq.m
Driving method 1/10 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
