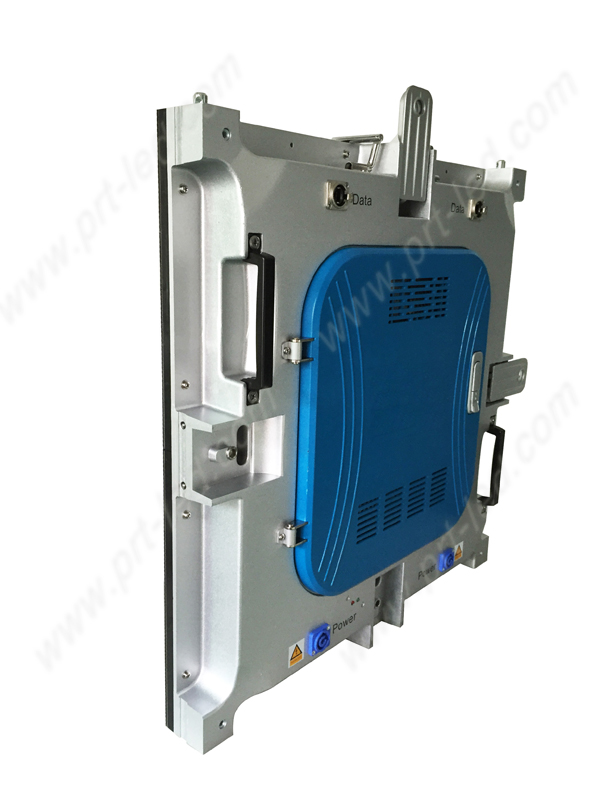

Full Color Slim Indoor P6 Rental LED Display/Video Screen (576X576mm)

  • P6 indoor

  • Video Display

  • 1R,1G,1B

  • 1/8 Scan

  • LED Video Display

  • IP43

  • Die-Cast Aluminum

  • 288X288mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 6mm

  • 27,777 dots / m⊃2;

  • Win XP, Win 2000, 98, Nt,Win7/8

  • Stage Performance, Advertising, Shopping Guide, TV Monitor

  • CE, RoHS, CCC, FCC

  • SMD3528

  • 96X96dots

  • Flight Case

  • China

Full Color P6 Slim Indoor Rental LED Screen with Die-casting Cabinet 576x576mm,super slim,lower power consumption, lower cost, long life span, 2 years warranty

Product advantages:

1.High resolution, High definition, Good performance

2.Slim rental led screen with panel size of 576X576mm, thickness is only 60mm

3.Die. Casting Aluminum material keep strong
configuration and lasting

4.Light weight, only with 10.5kgs per panel, it is portable,easy to move and transport

5.With fast locks and aviation plugs, easy to install and dismantle without any tools

6.Packed with flight case, convenient to pack and  transport

Suit for P4.8, P5.33, P6 SMD 3 in 1 LED display

More pictures for reference:

Full Color Slim Indoor P6 Rental LED Display/Video Screen (576X576mm)
Full Color Slim Indoor P6 Rental LED Display/Video Screen (576X576mm)

Full Color Slim Indoor P6 Rental LED Display/Video Screen (576X576mm)
P6 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch 6mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 288mm*288mm
Resolution of module 48x48
Size of cabinet 576mm x 576mm x 65mm
Resolution of cabinet 96x96
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 12.50KGS
Brightness >1500cd/sq.m
Density 27777dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 5-60M
Maximum power consumption 1000W/sq.m
Average power consumption 560W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP43
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
