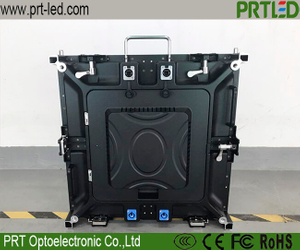

High Definition P2.5 LED Wall Panel for Meeting Room/Stage Background

Quantity:
  • P2.5-led panel 480x480mm

  • Video Display

  • 1R,1G,1B

  • 1/16 Scan

  • LED Video Display

  • IP43

  • 480X480mm

  • SMD2121

  • PRT

  • Shenzhen

  • Full Color

  • 2.5mm

  • 160000dots/Sq.M

  • Win XP,Win 2000,Win7/8

  • Stage Performance, Advertising, Shopping Guide

  • CE, RoHS, CCC, FCC

  • Die-Cast Aluminum

  • Black

  • CE, FCC. ROHS, 3C

  • 8528591090


HD P2.5 Full Color Indoor LED Wall with high gray scale and high contrast ratio,good uniformity, seamless splice, perfect performance

1. Black lamp body and SMT led encapsulation technology confirm the high brightness and wide view angle

2. Cabinet made with Aluminum material ensure light weight andgood heat dissipation

3. Small panel size of 480×480mm and with thickness of 65mm only,can be picked up by one hand

4. Packed with flight cases,keep good packing  and safe condition,convenient to move and transportation

5. With fast locks and aviation plugs,easy to combine and quick to install and dismantle

6. Seamless splicing,high definition and good performance


P2.5 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 3mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 160mm x 160mm
Resolution of module 64x64dots
Size of cabinet 480mm x 480mm x 65mm
Resolution of cabinet 192x192dots
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 10.5KGS
Brightness >1200cd/m2
Density 160000dots/m2
Best viewing angle 140° /140°
Pixel Configuration 1R1G1B
Best viewing distance 2-30M
Maximum power consumption 1200W/m2
Average power consumption 640W/m2
Driving method 1/32 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
