Hot Sale P3.91 Full Color Indoor LED Board with 500X500mm Panel

Quantity:
  • P3.91
  • Video Display
  • 1R,1G,1B
  • 1/16
  • LED Video Display
  • IP43
  • SMD2121 Black
  • 104X104mm
  • Die-Casting Aluminum
  • Flight Case or as Required
  • Shenzhen China
  • Full Color
  • 3.91mm
  • 65746dots/Sq.M
  • WIN XP
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, FCC
  • 250X250mm
  • 500X500mm/500X1000mm
  • PRT
  • CE, FCC, Rohs
  • 8528591090
Hot sale P3.91 Indoor LED Board with size  500x500mm or  500x1000mm cabinets for indoor rental,with high contrast ration, high cost performance and good display performance


Product Features:

1. Cabinet is made with Die-casting Aluminum material, strong and durable

2. Light weight and super thin, less than 75mm thickness, easy to move, and portable

3. Rental design cabinet, can be fixed or hung,and easy to install and dismantle

4. Exquisite and tasteful appearance due to structural wire layout

5. Back installation for drivers, benefical to maintenance

6. Packed with flight case, convenient to collect and transport


More pictures for reference:

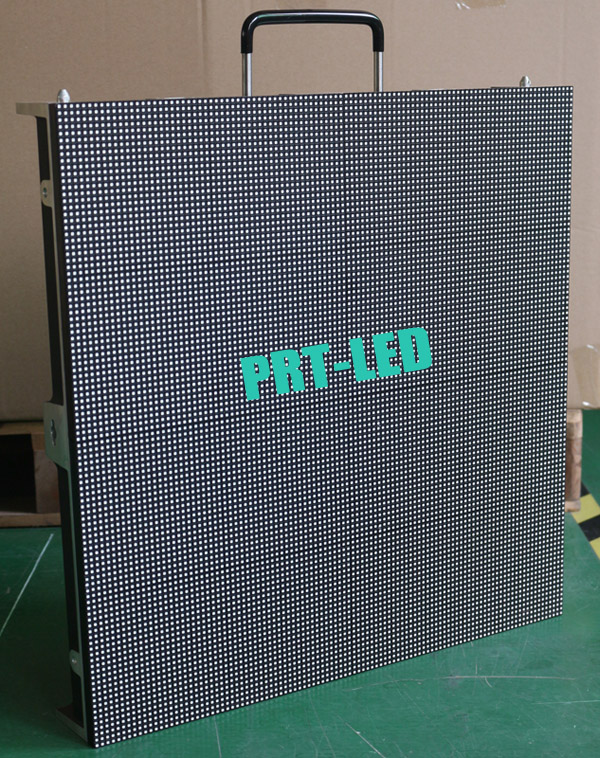

Hot Sale P3.91 Full Color Indoor LED Board with 500X500mm Panel

Hot Sale P3.91 Full Color Indoor LED Board with 500X500mm Panel

Hot Sale P3.91 Full Color Indoor LED Board with 500X500mm Panel
Hot Sale P3.91 Full Color Indoor LED Board with 500X500mm Panel

Hot Sale P3.91 Full Color Indoor LED Board with 500X500mm Panel

Hot Sale P3.91 Full Color Indoor LED Board with 500X500mm Panel

Related parameters as following:

P3.91 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 3.91mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 250mm*250mm
Resolution of module 64x64
Size of cabinet 500mm x 1000mm / 500mm x 500mm
Resolution of cabinet 128x256/128x128 dots
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 14KGS/8kgs
Brightness >1600cd/sq.m
Density 65746dots/sq,m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
