Latest Independent Master Controller/Sending Card for Rental LED Display

Quantity:
  • MCTRL660
  • Combination
  • Continuous
  • RoHS, CE, FCC,UL,Eac
  • Non-Customized
  • Novastar
  • Video
  • Novastar
  • 527*372*147mm
  • 8537101190
  • Program
  • Non-Linear
  • Monitoring
  • New
  • Aluminum Alloy
  • Mctrl660
  • LED Screen
  • Paper Carton
  • Shenzhen
MCTRL660 is the latest independent master controller of NovaStar, which is mainly applied for display rental service. It supports screen configuration at any time without a computer.

Description:

Input Resolution :1920×1200,2048×1152,2560×960(width and height can be specially defined by customers)

Capacity :2.3 million pixels.

Supply Voltage :AC-100-240V-50/60HZ

Control Method :USB Interface

Video Interface :HDMI/DVI

Audio Interface :HDMI/3.5mm

Viedo Format :RGB,YCrCb4:2:2,YCrCb4:4:4

Output Interface :4 Ethernet ports

Bit Depth Of Video Resource :8/10/12bit

Light Sensor Interface :Don't Support

Certification :CE, ROHS, FCC, UL, EAC

1) It has adopted an innovative design to implement smart configuration and the screen configuration can be completed within 30 seconds;
2) It has adopted Nova G4 engine, which makes the screen stable and flicker free without scanning lines. The images become exquisite and bring a good sense of depth;
3) It supports Nova's new-generation pixel-by-pixel calibration technology which is fast and efficient;
4) It can implement white balance calibration and color gamut mapping based on different features of LEDs used by displays to ensure restoration of true colors;
5) It is the only control system supporting the input of 12-bit high-definition multimedia interface (HDMI) and high-bandwidth digital content protection (HDCP) in China;
6) It supports screen configuration at any time without a computer;
7) It supports manual adjustment of screen brightness, which is convenient and efficient. These features have satisfied the special needs of display rental service to the maximum extent;
8) HDMI/DVI Input;
9) HDMI/DVI Output;
10) HDMI/external audio input;
11) 12bit/10bit/8bit HD video source;
12) Resolution supported: 2048×1152,1920×1200,2560×960;
13) Resolution supported: 1440×900,(12 bit/10 bit);
14) Cascading supported;
15) 18 bit gray scale processing and presentation;
16) Video format: RGB, YCrCb4:2:2, YCrCb4:4:4.

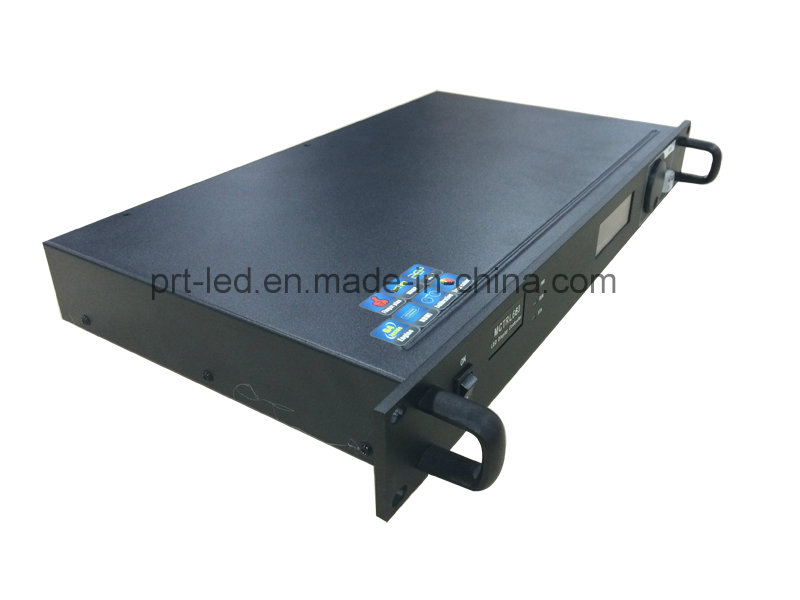

More pictures:
Latest Independent Master Controller/Sending Card for Rental LED DisplayLatest Independent Master Controller/Sending Card for Rental LED Display

Latest Independent Master Controller/Sending Card for Rental LED Display

Latest Independent Master Controller/Sending Card for Rental LED Display

Specification:


Input index
Interface Number Resolution specification
DVI 1 VESA standard (support 1080i input); support HDCP
HDMI 1 EIA/CEA-861 standard; meet HDMI-1.3 standard; support HDCP
Output index
Interface Number Resolution specification
DVI 1 Correspond with DVI input
HDMI 1 Correspond with HDMI input
Control interface
Port Number Instruction
TO PC(USB) 1 Control interface of upper computer
Specification for complete machine
Input power AC 100-240V, 50/60Hz
Power consumption of complete machine 16W
Working temperature -20~60ºC
Dimension 483×273.5×55.56(MM)
Weight 5.3Kg
Input power 3.9 Kg
USB Cable 1.5M
DVI Cable 1.5M
