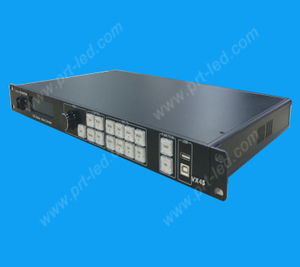

Lvp605 Video Processor LED Controller for LED Screen

Quantity:
  • LVP605

  • Monitoring

  • Lvp605

  • LED Display

  • Combination

  • Continuous

  • Non-Customized

  • Vd wall

  • Shenzhen

  • RoHS, CE

  • Vd Wall

  • Video

  • Adjust

  • Non-Linear

  • New

  • Aluminum Alloy

  • 145 mm x 370mm x 535mm

  • 8528591090

High Definition LED Video wall processor is becomed more and more polular in the area of led display, used to Profundidad promotion,Specifications Resolution Conversion,Image to zoom,Color space conversion and Image processing and enhancement, to improve Visual effects image.

Widely used in Large venus display applications such as: Rental Performance, TV broadcast center, large-scale stage and theatre, high-end meeting, exhibition etc.

Features:

1.  10+ Bit Faroudja® DCDI Cinema Processing
    2.  New Faroudja® Real Color®
    3.  Faroudja® TureLife™ Video Enhancer
    4.  Advanced 4x4 Pixels Interpolation Scaling Algorithm
    5.  HDMI 1.3a with HDCP, HD 1080P input
    6.  SDI / HD-SDI / 3G-SDI (1080P) Input
    7.  10-bit Processing
    8.  Seamless Switching, Fade-in / Fade-out switching & Blend switching in random input signals
    9.  HD Text, Flash, Graphics & Logo Overlay
    10. 4 custom PIP / POP display modes, which can be switched by pressing one button
    11. Hot Spare function, display will be stable and reliable
    12. Picture Freeze function
    13. AIAO( Any In Any Out ) function allows for displaying any capturing picture in specific area on the screen
    14. 2304 x 1152 or 2560 x 816 output for single machine
    15. Multi-machine in parallel, multi-unit installed in parallel drive indefinite LED lattice
    16. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command
          for operating and setting
    17. Press keys or knob on frontal panel to directly select 10-channel input signal source,including:
          3×CVBS        1×DVI                             1×HDMI
          2×VGA          1×YPbPr / YCbCr           1×S-Video
          1×EXT.( extended modle , can be VIDEO or SD I / HD-SDI / 3G-SDI or VGA / DVI / HDMI )
    18. 2 channels can be configured to connect external stereo audio, plus DVI, HDMI and SDI audio,
          there are 5-channel audio for synchronous switch
    19. 2 LED Transmission Cards Built-in ability ( sending cards are optional )
    20. 24 / 7 Application

Specification:

Inputs
Nums / Type 3×Composite
1×S-Video
1×YPbPr
2×VGA(RGBHV)
1×HDMI(1.3a with HDCP)
1×DVI(HDMI)
1×EXT.(Extended )
Video system PAL / NTSC
Composite Video
Scope / Impedance
1V(p_p)/ 75Ω
S-video Scope /
Impedance
Y:1.0V(p_p)/ 75Ω,C:0.35V(p_p)/ 75Ω
VGA Format PC(VESA) ≤2048x1152@60Hz
VGA Scope / Impedance R,G,B = 0.7 V(p_p)/ 75Ω
DVI Format SD / HD(CEA-861) ≤1920x1080@60Hz
PC(VESA) ≤2048x1152@60Hz
HDMI 1.3 Format( HDCP ) SD / HD(CEA-861) ≤1920x1080@60Hz
PC(VESA) ≤2048x1152@60Hz
YPbPr Format SD / HD(CEA-861) ≤1920x1080@60Hz
YPbPr Scope / Impedance Y= 1.0V(p_p)/ 75Ω
Pb= 0.35V(p_p)/ 75Ω
Pr= 0.35V(p_p)/ 75Ω
SDI format SDI-SMPTE 259M-C 576i @50Hz
480i @60Hz
HD-SDI
3G-SDI format
HDSDI-SMPTE 292M
SMPTE 274M/296M
SMPTE 424M/425M
≤1920 x 1080@50Hz / 60Hz
AUDIO Scope / Impedance 2.0Vp-p / 10K
Input Connectors VGA:15pin D_Sub( Female )
DVI:24+1 DVI_D
YPbPr: BNC×3
Composite:BNC
S-VIDEO:4pin mini DIN( Female )
SDI / HD-SDI / 3G-SDI:BNC
Outputs
Nums / Type 1×VGA(RGBHV)
2×DVI
VGA / DVI Format 1024×768@60Hz / 75Hz
1280×1024@60Hz / 75Hz
1600×1200@60Hz
1920×1080@50Hz / 60Hz
1366×768@60Hz
1440×900@60Hz
2048×1152@60Hz
2304x1152@60Hz
2560x816@60Hz
VGA Scope / Impedance R,G,B = 0.7 V(p_p)/ 75Ω
Output Connectors VGA OUT:15pin D_Sub( Female )
DVI OUT1:24+5 DVI_I
DVI OUT2:<s, ,="" ly:="" ?font-fami,="" arial;="" letter-spacing:="" 0pt;="" color:="" #000000;="" font-size:="" 14px;="" mso-bidi-font-size:="" 6.0pt?="" pa,="" n="" lang,="EN-US" styl,="" ?,,="" e="," ?="">24+1 DVI_D
Others
Control Panel Button / Knob / RS232
Power 100-240VAC  35W  50 / 60Hz
Operating Temp 5-40 ºC
Humidity 15-85%
Dimensions(Package) 145 mm (height) ×370mm (width) ×535mm (length)
Weight(G.W.) 5.0 Kg
Weight(N.W.) 3.2Kg
