Prt Supply Professional LED Display Controller Vx4s for Video Screen

  • VX4S

  • Combination

  • Continuous

  • RoHS, CE, FCC,UL,Eac

  • Non-Customized

  • Novastar

  • Video

  • Novastar

  • 527*372*147mm

  • 8537101190

  • Adjust

  • Non-Linear

  • Monitoring

  • New

  • Aluminum Alloy

  • Vx4s

  • LED Display

  • Paper Carton

  • Shenzhen

The VX4S is a professional LED display controller. Besides the function of display control, it also features in powerful front end processing, so an external scalar is no longer needed. With professional interfaces integrated, VX4S with excellent image quality and flexible image control greatly meet the needs of the broadcast industry, Its friendly in user-interface. so that the display to work has never been as easier and more enjoyable as with VX4S.

Product Function:

Inputs :HDMI, DVI, VGA × 2, CVBS × 2, DP, SDI

Outputs :Ethernet port × 4

Loading Capacity : 2.35 million pixels ,the maximum pixel CLK is 165MHz


Video Monitor :VGA OUT, DVI OUT

Communication Mode :USB/LAN

Image Mosaic :Support

Crop Settings :Support

PIP :Support

Power :Emerson original power supply

Certification :CE,ROHS,FCC,UL,EAC

Detail Description:
1)  The inputs of the VX4S include CVBS×2, VGA×2, DVI×1, HDMI×1,  DP×1 and SDI×1. They support input resolution up to 1920×1200@60Hz; the input images of VX4S can be zoomed point-to-point according to the screen resolution;
2)  Provide seamless high-speed switch and fade-in/ fade-out effect so as to strengthen and display picture demonstration of professional quality;
3)  The location and size of PIP can both be adjusted, which can be controlled at will;
4)  Adopts the Nova G4 engine; the screen is stable and flicker free without scanning lines; the images are exquisite and have a good sense of depth;
5)  Can implement white balance calibration and color gamut mapping based on different features of LEDs used by screens to ensure reproduction of true colors;
6)  HDMI/external audio input;
7) 10bit/8bit HD video source;
8)  The loading capacity: 2.3 million pixel;
9)  Support multiple controller montage for loading huge screen;
10) Supports Nova's new-generation point-by-point correction technology; the correction is fast and efficient;
11) Computer software for system configuration is not necessary. The system can be configured using one knob and one button.  All can be done just by fingers. Tha is what we called Touch Track!
12) Adopts an innovative architecture to implement smart configuration; the screen debugging can be completed within 30 seconds; greatly shorten the preparation time on the stage;
13) A intuitive LCD display interface and clear button light hint simplify the control of the system.

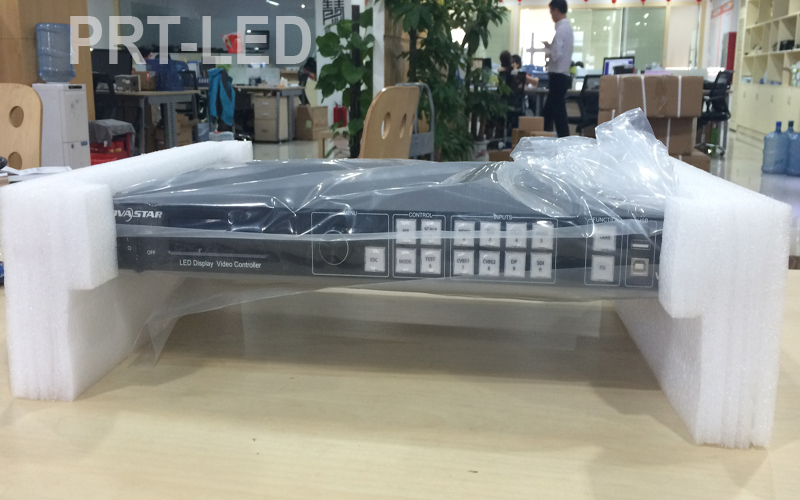

More pictures for good understanding:
Prt Supply Professional LED Display Controller Vx4s for Video ScreenPrt Supply Professional LED Display Controller Vx4s for Video Screen

Prt Supply Professional LED Display Controller Vx4s for Video Screen

Prt Supply Professional LED Display Controller Vx4s for Video Screen

Specififaction as following:

Input Index
Port Number Resolution Specification
VGA 2 VESA Standard, support max. 1920×1200@60Hz input
DVI 1 VESA Standard (support 1080i input), support HDCP
SDI 1 480i,576i,720P,1080i/P
HDMI 1 EIA/CEA-861 standard, in accordance with HDMI-1.3 standard, support HDCP
DP 1 VESA Standard
 Output Index
Port Number Resolution Specification
DVI LOOP 1 Consistent with DVI input
VGA 1 1280×1024@60Hz   1440×900@60Hz
1680×1050@60Hz   1600×1200@60Hz
1600×1200@60Hz - Reduced
1920×1080@60Hz  2560×816@60Hz
2048×640@60Hz   1920×1200@60Hz
2304×1152@60Hz   2048×1152@60Hz
1024×1280@60Hz   1536×1536@60Hz
Self-defined output resolution (Bandwidth optimization)
Horizontal resolution maximum 3840 pixels
Vertical resolution maximum 1920 pixels
