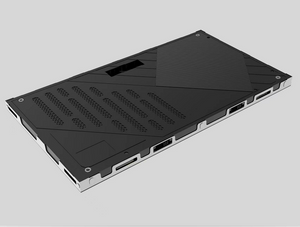

New P1.5 Full Color Indoor LED Display with 400X300mm Panel

P1.5 Full Color Indoor LED Display with 400X300mm Panel
Slim thickness and light weight
High contrast ratio and high definition
High refresh rate and rich display color
Quantity:
  • P1.5

  • Video Display

  • 1R,1G,1B

  • 1/32 Scan

  • LED Video Display

  • IP31

  • SMD1010 Black

  • 134X100dots

  • 268X200dots

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 1.5mm

  • 444444dots/Sq.M

  • XP,Window 2000,Nt

  • Stage Performance, Advertising, Shopping Guide, Rental

  • CE, RoHS, ETL

  • 200X150mm

  • 400X300mm

  • PRT

  • Shenzhen China

P1.5 Indoor LED Display with Full Color for indoor with cabinet size of 400x300mm, seamless spliced,high contrast, perfect vision effect, like TV,
widely used in TV studio, Concert, Mornitor room,supervise control

Specifications:

1. Ultra HD: up 444444pixels per square meters,like as HD TV screen with full color

2.Ultra slim cabinet: the thickness is only 75mm,with fashion configuration design

3.High strength: made with high quality Die-casting Aluminum cabinet, enhance the heat dissipation,and extend the cabinet's working life

4.Seamless splice: no space/gap between the cabinet,ensure the good informance

5.High refresh rate: with advanced technology and reliable parts ensure the high gray scale and high refresh rate

Advantages:

1.Support seamless splice for any sizes

2.Adjustable brightness, support 16Bit high gray scale,for images to be brightness and perfect details

3.High contrast ratio,fast response speed,high refresh rate, meet the high speed image display,and support 3D display

4.High efficiency heat dissipation, no fans no noise

5.Wide view angle, up to 140 degree, with same effection and no brightness difference

6.Long life span to 100000Hours, low brightness attenuation,good uniformity

7.With 2500-10000K color temperature for choosing, can meet the different request according to the different area, especially for some special request application,like as studio,virtual simulation,Medical Display etc, and popular used in monitor room,meeting room,Command room,message display etc.



DESCRIPTION: PH1.5  Indoor
No. Parameter Specification
1 Pixel Pitch(mm) 1.5
2 Pixel Density 444444dots/m⊃2;
3 LED Type SMD1010 (black)
4 LED Wave Length(nm) R:620-625/G:517.5-520/B:465-467.5
5 LED Luminous Intensity(mcd) R:100~130/G:120~156/B:20~26
6 Viewing Angle 140°
7 Brightness  1000cd/m2;
8 Drive Method 1/32 scan
9 Driving IC MBI5153
10 Color Depth 13bit
11 Refresh Rate(Hz) 2000
12 Frame Rate(Hz) ≥60
13 Brightness Adjustment Manual/Auto/Program
14 Module Size(mm) 200×300
15 Module Resolution(dots) 134×200
16 Cabinet Size(mm) 400×300
17 Cabinet Display Resolution(dots) 268×200
18 Cabinet Type and Material Die-casting Aluminum
19 Cabinet Weight(Kg) 6.1kg
20 Power Supply 5.0V 60A
21 Voltage(V) AC 220V
22 Avg. Power Consumption  400W/m⊃2;
23 Max. Power Consumption 900W/m⊃2;
24 Service Access Back maintenance
25 IP Grade IP31
26 Operating Temp/Humidity -20ºC~50ºC, 10~90%RH
27 Storage Temp/Humidity -40ºC~60ºC, 10~90%RH
28 Lifetime(Normal Temp) ≥50000H
29 System Control Nova/Linsn
30 Compliant Standard CCC,CE,RoHs
