Super Slim Video Wall Advertising LED Panel for Indoor P2.5

slim led video wall P2.5 with die-casting aluminum cabinet 480x480mm for indoor advertising display
high resolution,high refresh rate,high gray scale,good display vision

Quantity:
  • P2.5
  • Video Display
  • 1R,1G,1B
  • 1/16 Scan
  • LED Video Display
  • IP31
  • 480X480mm
  • SMD2121
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 2.5mm
  • 160000dots/Sq.M
  • Win XP,Win 2000
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, FCC
  • Die-Cast Aluminum
  • Black
  • Flight Case or Wooden Case
  • Shenzhen
P2.5 Full Color led TV, vieo Wall with high gray scale and high contrast ratio,good uniformity, seamless spliced, perfect performance

1. Black lamp body and SMT led encapsulation technology confirm the high brightness and wide view angle

2. Cabinet made with Aluminum material ensure light weight and good heat dissipation

3. Small panel size of 480×480mm and with thickness of 60mm only,can be picked up by one hand

4. Packed with flight cases,keep good packing  and safe condition,convenient to move and transport

5. With fast locks and aviation plugs,easy to combine and quick to install and dismantle

6. Seamless splicing,high definition and good performance

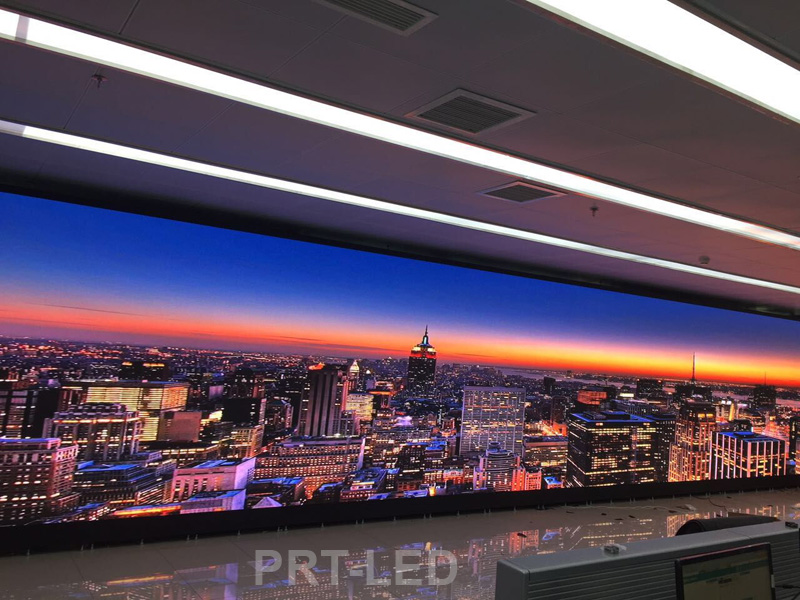

More pictures for reference:
Super Slim Video Wall Advertising LED Panel for Indoor P2.5


Super Slim Video Wall Advertising LED Panel for Indoor P2.5
Super Slim Video Wall Advertising LED Panel for Indoor P2.5
Super Slim Video Wall Advertising LED Panel for Indoor P2.5

Super Slim Video Wall Advertising LED Panel for Indoor P2.5

Super Slim Video Wall Advertising LED Panel for Indoor P2.5



P2.5 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 2.5mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 160mm x 160mm
Resolution of module 64x64
Size of cabinet 480mm x 480mm x 65mm
Resolution of cabinet 192x192
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 10.5KGS
Brightness >1200cd/sq.m
Density 160000dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 2-30M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq,m
Driving method 1/32 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
