Outdoor/Indoor Rental LED Display with 500X500/500X1000mm Panel (P3.91/P4.81/P6.25)

Quantity:
  • P3.91
  • Video Display
  • 1R,1G,1B
  • 1/16
  • LED Video Display
  • IP31
  • SMD2121 Black
  • 104X104mm
  • Die-Casting Aluminum
  • Flight Case or as Required
  • Shenzhen China
  • Full Color
  • 3.91mm
  • 65746dots/Sq.M
  • WIN XP
  • Stage Performance, Advertising, Shopping Guide, LED Video Wall
  • CE, RoHS, CCC, FCC
  • 250X250mm
  • 500X1000mm/500X500mm
  • PRT
  • CE, FCC, Rohs
  • 8528591090
Hot sale Rental LED Display with panel size 500x1000mm or 500x500mm for with high contrast ratio and good uniformity, seamless spliced and competitive cost, suit for P4.81,P5.68,P5.95,P6.25 and P8.928


Product Features:

1.SMD LED encapsulation confirm wide view angle, above 140
° for horizontal and vertical, without no strobe and color casting from different angle,good vision effect

2.Black body LEDs ensure high contrast ratio reach to 5000:1,and high resolution up 1080P

3. Cabinet is made with Die-casting Aluminum material for strong and durable

4. Light weight and super slim thickness, less than 75mm,and light weight 13.5kgs for 500x1000mm, and 7.8kgs for 500x500mm panel, easy to move and be portable

5. Cabinet with fast locks and aviation plugs for connecting easily with each other, suit for fixed or hung install,easy to install and dismantle

6. Exquisite and tasteful appearance due to structural wire layout

7. No fans design, low power consumption and good heat dissipation

8. Packed with flight case, convenient to be collected and transported.better for rental use

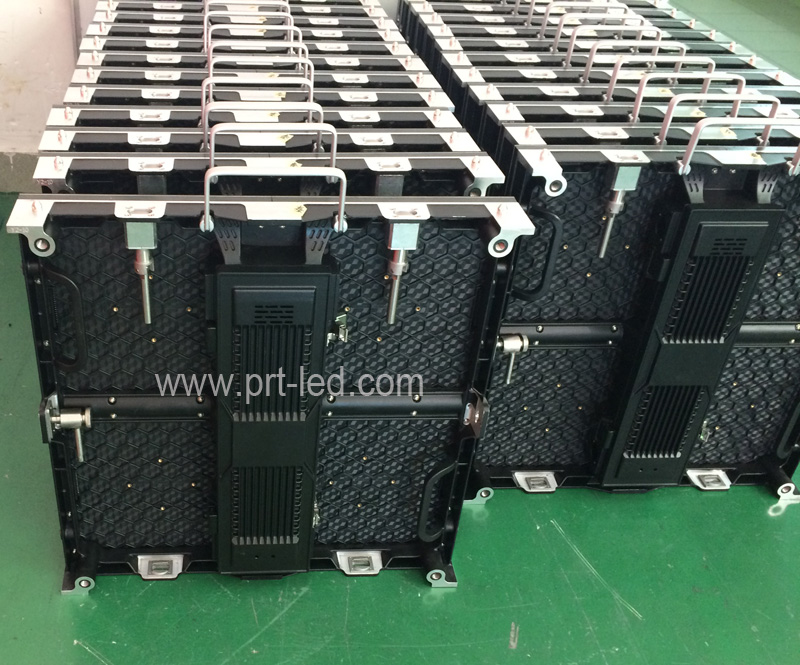

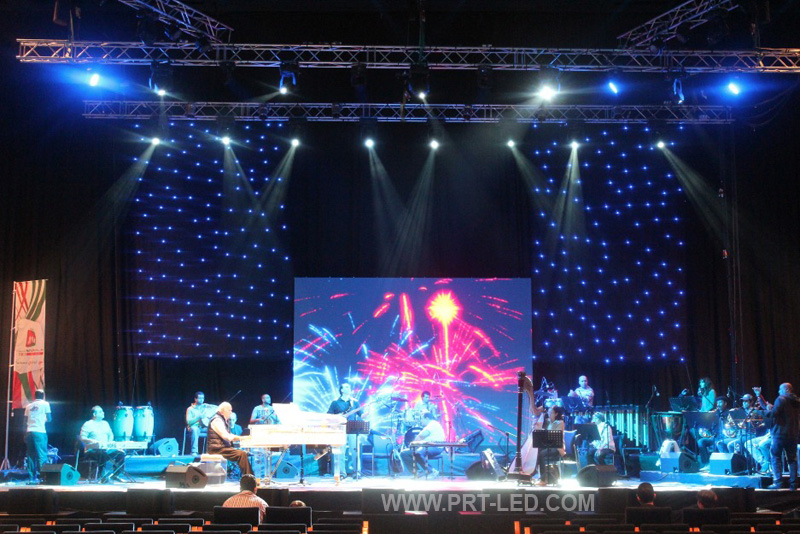

More pictures for reference:

Outdoor/Indoor Rental LED Display with 500X500/500X1000mm Panel (P3.91/P4.81/P6.25)

Outdoor/Indoor Rental LED Display with 500X500/500X1000mm Panel (P3.91/P4.81/P6.25)
Outdoor/Indoor Rental LED Display with 500X500/500X1000mm Panel (P3.91/P4.81/P6.25)
Outdoor/Indoor Rental LED Display with 500X500/500X1000mm Panel (P3.91/P4.81/P6.25)
Outdoor/Indoor Rental LED Display with 500X500/500X1000mm Panel (P3.91/P4.81/P6.25)
Outdoor/Indoor Rental LED Display with 500X500/500X1000mm Panel (P3.91/P4.81/P6.25)




Related parameters as following,please contact us with your detail requirements!

Usage Indoor Outdoor
Model No. P3.91 P4.81 P5.95 P6.25 P3.91 P4.81 P5.95 P6.25
Pixel pitch 3.91mm 4.81mm 5.95mm 6.25mm 3.91mm 4.81mm 5.95mm 6.25mm
Led type(Black) SMD2121 SMD2121 SMD3528 SMD3528 SMD2727 SMD2727 SMD3535 SMD3535
Resolution(dots/) 65746 43264 28224 25600 65746 43264 28224 25600
Brightness(Nits) ≥1500 ≥1500 ≥1800 ≥1800 ≥5500 ≥5500 6000 6000
Drive mode 1/16 1/13 1/8 1/10 1/16 1/13 1/8 1/10
Module size(mm) 250×250 250×250 250×250 250×250 250×250 250×250 250×250 250×250
Panel size (mm) 500×500 500×500 500×500 500×500 500×500 500×500 500×500 500×500
Panel resolution 128×128 104×104 84X84 80X80 128×128 104×104 84X84 80X80
Cabinet weight 8kgs 8kgs 8kgs 8kgs 10kgs 10kgs 8kgs 8kgs
Power consumption
Max./Avg. (W/)
600/300 600/300 700/300 560/280 600/300 600/300 700/300 560/280
View angle(H/V) 160°/140° 160°/140° 160°/140° 160°/140° 160°/140° 160°/140° 160°/140° 160°/140°
Refresh rate(Hz) ≥1920 ≥1920 ≥1920 ≥1920 ≥2000 ≥2000 ≥2000 ≥2000
Grey scale 16Bits 16Bits 16Bits 16Bits 16Bits 16Bits 16Bits 16Bits
Best view distance 2-14M 2-14M 3-18M 3-21M 2-35M 2-40M 3-50M 3-50M
Protection level IP31 IP31 IP31 IP31 IP65 IP65 IP65 IP65
Input Power (V) 110~240 110~240 110~240 110~240 110~240 110~240 110~240 110~240
Working Temperature -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC -20ºC~+50ºC
Working humidity 10% ~90% 10% ~90% 10% ~90% 10% ~90% 10% ~90% 10% ~90% 10% ~90% 10% ~90%
Control Caste 100M, Fiber optical10000M
