P4.81 Full Color Background LED Digital Display for Indoor/Outdoor Rental

Quantity:
  • P4.81-500
  • Video Display
  • 1R,1G,1B
  • 1/13
  • LED Video Display
  • IP31
  • SMD2121
  • 500X500mm
  • PRT
  • CE, FCC, Rohs
  • 8528591090
  • Full Color
  • 4.81mm
  • 43264dots/Sq.M
  • XP,Windows 7/8,Nt
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, FCC
  • 250X250mm
  • Die-Casting Aluminum
  • Wooden Case
  • Shenzhen China

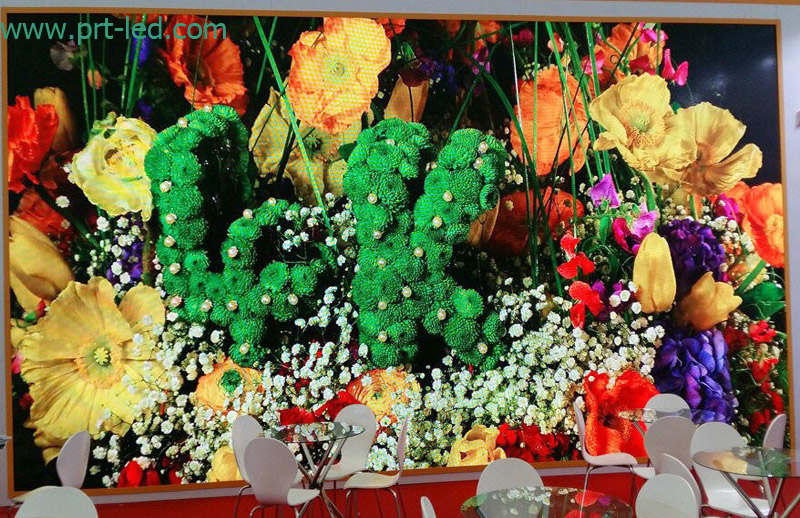

P4.81 Full Color LED Digital Display for indoor rental with size of 500x500mm die-casting aluminum cabinets,also can do 500x1000mm, high resolution and competitive price


1.Made with Die-casting Aluminum material, ensure light weight and durable

2.Rental design,easy and quick to install and dismantle with any tools

3.Back installation for drivers,benefical to maintenance

4.No fans design,no noise,good for envirnment

5.Seamless splice,can be adjustable mildly

6.High contrast ratio,high refresh rate,good performance

7.Widely used for banquet,concert,exhibition,show,conference,advertising rental

6. The configuration design is available for P3.91,P4.81, P5.68, P5.95,P6.25 and P8.928

P4.81 Full Color Background LED Digital Display for Indoor/Outdoor Rental

P4.81 Full Color Background LED Digital Display for Indoor/Outdoor Rental
P4.81 Full Color Background LED Digital Display for Indoor/Outdoor Rental
P4.81 Full Color Background LED Digital Display for Indoor/Outdoor Rental P4.81 Full Color Background LED Digital Display for Indoor/Outdoor Rental

P4.81 Full Color Background LED Digital Display for Indoor/Outdoor Rental


P4.81 Indoor full Color LED Screen Specification
Pixel pitch 4.81mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 250mm x 250mm
Resolution of module 52x52
Size of cabinet 500x500mm/500mm x 1000mm x 75mm
Resolution of cabinet 104x104/104x208
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 8kgs/14KGS
Brightness >1500cd/sq.m
Density 43264dots/sq.m
Best viewing angle 160 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-60M
Maximum power consumption 800W/sq.m
Average power consumption 300W/sq.m
Driving method 1/13 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >2000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
