P4.81, P5.95, P6.25 Rental Video Wall Full Color Advertising LED Display for Indoor or Outdoor (500*500mm/500*1000mm board)

Quantity:
  • P4.81
  • Video Display
  • 1R,1G,1B
  • 1/13scan
  • LED Video Display
  • IP65
  • SMD2121black
  • 52*52dots
  • PRT
  • CE, FCC, Rohs
  • 8528591090
  • Full Color
  • 4.81mm
  • 43264dots/Sq.M
  • Win XP,Win7/8,Nt
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, FCC
  • 250X250mm
  • Die-Casting Aluminum
  • Flight Case or as Required
  • Shenzhen China
Hot sale and popular P3.91,P4.81 with 500x1000mm or 500x500mm die-casting aliminum panel,high contrast ratio 5000:1, good uniformity, seamless spliced and cheaper cost. for Indoor stage,show,event,banquet background,meeting room etc.


Product Features:

1. Cabinet is made with Die-casting Aluminum material, strong and durable ,long life time

2. Light weight and super thin, less than 75mm thickness, easy to move, and portable

3. Rental design cabinet, can be fixed or hung,and easy to install and dismantle

4. Exquisite and tasteful appearance due to structural wire layout

5. Back installation for drivers, benefical to maintenance

6. Packed with flight case, convenient to be collected and transportation

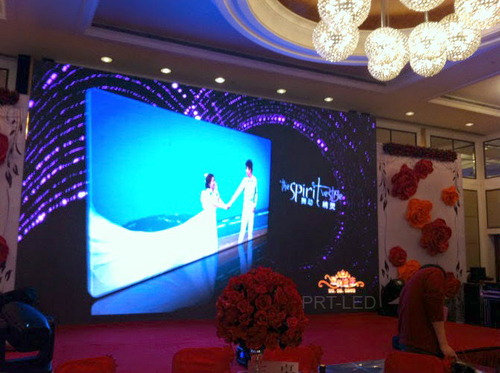

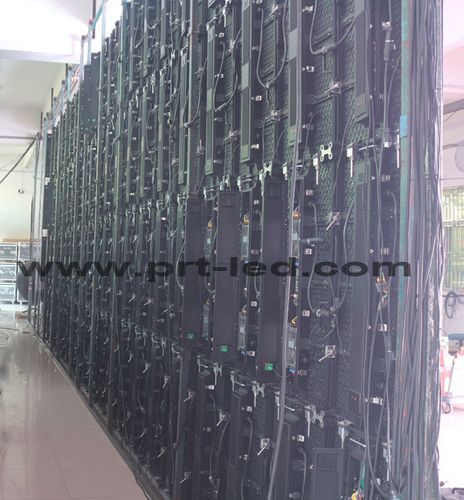

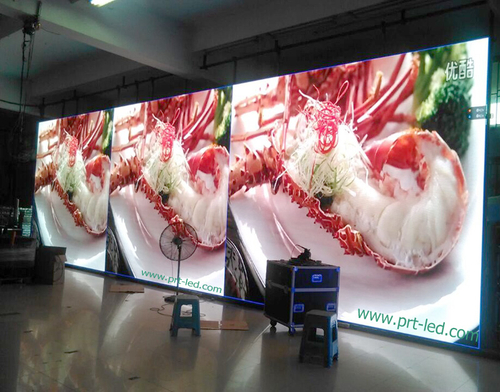

More pictures for reference:
P4.81, P5.95, P6.25 Rental Video Wall Full Color Advertising LED Display for Indoor or Outdoor (500*500mm/500*1000mm board)

P4.81, P5.95, P6.25 Rental Video Wall Full Color Advertising LED Display for Indoor or Outdoor (500*500mm/500*1000mm board)
P4.81, P5.95, P6.25 Rental Video Wall Full Color Advertising LED Display for Indoor or Outdoor (500*500mm/500*1000mm board)
P4.81, P5.95, P6.25 Rental Video Wall Full Color Advertising LED Display for Indoor or Outdoor (500*500mm/500*1000mm board)

P4.81, P5.95, P6.25 Rental Video Wall Full Color Advertising LED Display for Indoor or Outdoor (500*500mm/500*1000mm board)


P4.81, P5.95, P6.25 Rental Video Wall Full Color Advertising LED Display for Indoor or Outdoor (500*500mm/500*1000mm board)



Related parameters for reference,please contact us for details!

P4.81 Indoor full Color LED Screen Specification
Pixel pitch 4.81mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 250mm x 250mm
Resolution of module 52x52
Size of cabinet 500x500mmx75mm or 500mm x 1000mm x 75mm
Resolution of cabinet 104x104dots or 104x208 dots
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 8KGS or 14KGS
Brightness >1500cd/sq.m
Density 43264dots/sq.m
Best viewing angle 160 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-60M
Maximum power consumption 800W/sq.m
Average power consumption 300W/sq.m
Driving method 1/13 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >2000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
