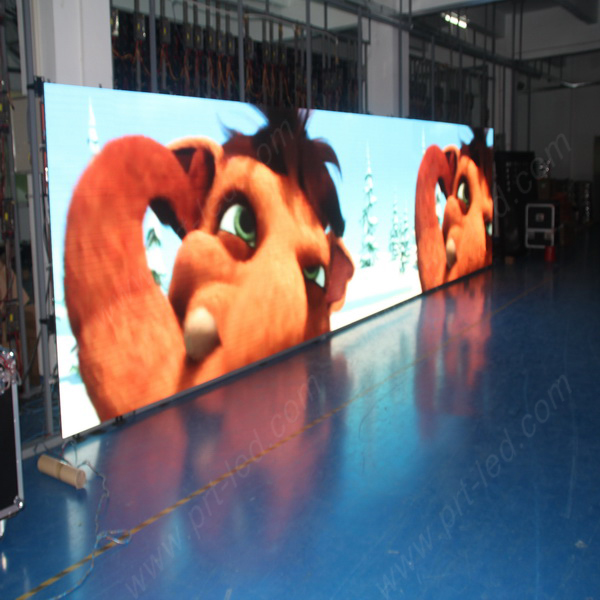

P4 Full Color LED Sign for Indoor Rental (512X512mm cabinet)

Quantity:
  • P4
  • Video Display
  • 1R,1G,1B
  • 1/16 Scan
  • LED Video Display
  • IP31
  • 512X512mm
  • 256X128mm
  • PRT
  • Shenzhen
  • Full Color
  • 4mm
  • 62500dots/Sq.M
  • Win XP,Win 2000
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, FCC
  • Die-Casting Aluminum
  • 64X32ots
  • CE, FCC. ROHS, 3C
  • 8528591090
P4 Full Color LED Sign for rental with Die-casting cabinet

Product features:

1.Made with die-casting aluminum, keep the structure strong and durable

2.Slim and small cabinet size of 576× 576× 60mm, with only 10.5kgs

3.The cabinet is portable,convenient to transport and collect, and packed with flight cases, can move to any where,

4.Rental design, easy to install and dismantle without any tools, save much time
Can be suspend or fixed installation, Seamless splicing

5.High brightness, good performance

6.Wide view angle, good heat dissipation

7.Lower noise,lower power consumtion

Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.


P4 Full Color LED Sign for Indoor Rental (512X512mm cabinet)
P4 Full Color LED Sign for Indoor Rental (512X512mm cabinet)


P4 Full Color LED Sign for Indoor Rental (512X512mm cabinet)
P4 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 4mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 256mm x 128mm
Resolution of module 64x32
Size of cabinet 512mm x 512mm x 65mm
Resolution of cabinet 128x128
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 10.5KGS
Brightness >1200cd/m2
Density 62500dots/m2
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/m2
Average power consumption 640W/m2
Driving method 1/15 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
