P6.25 Indoor Rental Full Color LED Display Panel /Video Panel (500*500mm or 500*1000mm size)

Quantity:
  • P6.25
  • Video Display
  • 1R,1G,1B
  • 1/10 Scan
  • LED Video Display
  • IP43
  • SMD3528
  • 500X500mm
  • Indoor Rental
  • Flight Case or Wooden Case
  • Shenzhen China
  • Full Color
  • 6.25mm
  • 25600dots/Sq.M
  • Win XP,Win 2000,98,Win7/8
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, ETL
  • 250X250mm
  • Die-Casting Aluminum
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
P6.25 Full Color LED Dispaly panel for indoor rental or fixed advertising,with high brightness,good performance and competitive cost, 2year warranty,meet with CE,FCC,RoHs standard

Product Features:

1. SMD led encapsulation confirm wide view angle and good uniformity,eyes friendly,closed view distance

2. Low power consumption,energy saving, long life span>100000Hours

3. Aluminum cabinet ensure lightweight,easy to install and dismantle,portable by one hand

4. Easy and quick to assemble without tools in short time

5. Low noise created, good environment protection

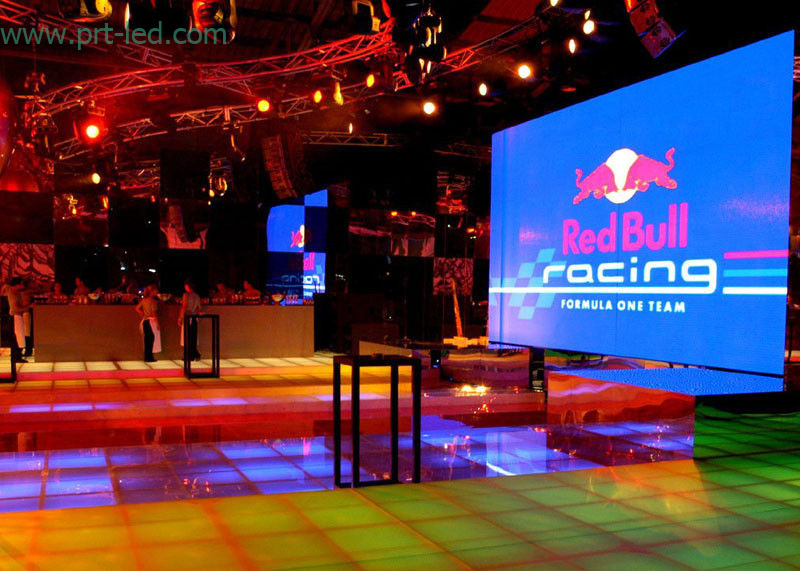

6.Widely used for stage, concert ,show, banquet, wedding background,rental led display




More pictures for reference,we have different cabinet designs,and with different cost,please contact us for details!

P6.25 Indoor Rental Full Color LED Display Panel /Video Panel (500*500mm or 500*1000mm size)

P6.25 Indoor Rental Full Color LED Display Panel /Video Panel (500*500mm or 500*1000mm size)

P6.25 Indoor Rental Full Color LED Display Panel /Video Panel (500*500mm or 500*1000mm size)
P6.25 Indoor Rental Full Color LED Display Panel /Video Panel (500*500mm or 500*1000mm size)
P6.25 Indoor Rental Full Color LED Display Panel /Video Panel (500*500mm or 500*1000mm size)

P6.25 Indoor full Color LED Screen/Curtain Specification
Pixel pitch 6.25mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 250mm*250mm
Resolution of module 40x40dots
Size of cabinet 500mmx500mm/ 500mm x 1000mm x 75mm
Resolution of cabinet 80x80/80x160dots
Material of Cabinet Die-casting Aluminum/Aluminum profile
Weight of Cabinet 8kgs/13.5KGS
Brightness >2500cd/sq.m
Density 25600dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 6-100M
Maximum power consumption 800W/sq.m
Average power consumption 500W/sqm
Driving method 1/10 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
