Pixel 4mm
Video Display
1R,1G,1B
1/16 Scan
LED Video Display
IP43
480X480mm
240X240mm
PRT
CE, FCC. ROHS, 3C
8528591090
Full Color
4mm
62500dots/Sq.M
Win XP,Win 7/8/10
Stage Performance, Advertising, Shopping Guide
CE, RoHS, CCC, FCC
Die-Cast Aluminum
60X60dots
Flight Case or as Required
Shenzhen

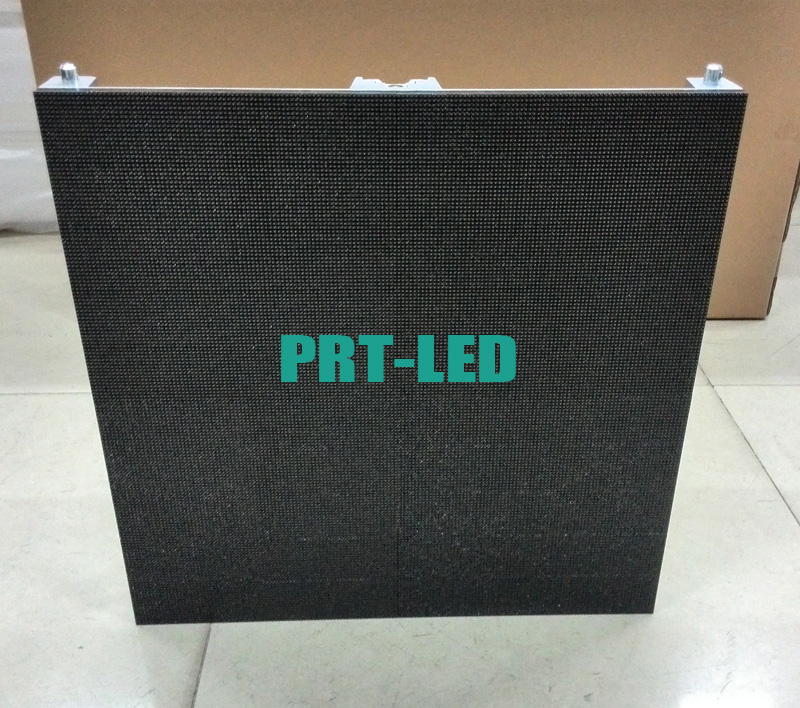

Slim Rental P4 Indoor LED Screen with Die-casting panel of 480x480mm,with light weight and slim thickness, can be stack installation or hung on truss,
Product Features:
1) SMD technology confirm the wide view angle and slim thickness,light weight
2) Die-cast Aluminum material,keep strong configuration and good heat dissipation
3) Small panel size of 480×480mm and with thickness of 60mm only
4) Packed with flight case,easy to move and transportation
5) With fast locks,easy to install and dismantle,better for rental
6) Seamless splicing,High brightness, good performance
7) No fans,no noise,good environment protection
This cabinet size also suit to Indoor led display P3,P3.75, P4,P5
Please see more pictures for your reference:
| P4 SMD2121 Indoor full Color LED Screen Specification | ||||||
| Pixel pitch | 4mm | |||||
| Pixel Configuration | 1R1G1B | |||||
| LED component | SMD2121 black | |||||
| Size of module | 240mm x 240mm | |||||
| Resolution of module | 60x60 | |||||
| Size of cabinet | 480mm x 480mm x 60mm | |||||
| Resolution of cabinet | 120x120 | |||||
| Material of Cabinet | Die-casting Aluminum | |||||
| Weight of Cabinet | 10.5KGS | |||||
| Brightness | >1200cd/sq.m | |||||
| Density | 62500dots/sq.m | |||||
| Best viewing angle | 140 /140 | |||||
| Pixel Configuration | 1R1G1B | |||||
| Best viewing distance | 3-50M | |||||
| Maximum power consumption | 1200W/sq.m | |||||
| Average power consumption | 640W/sq.m | |||||
| Driving method | 1/15 scan | |||||
| Control method | Synchronization | |||||
| Gray scale | 65536 | |||||
| Colors | 256*256*256 | |||||
| Color temperature | 3200-9300k | |||||
| Uniformity | 97% | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | -20ºC~+50ºC±10% | |||||
| Working humidity | 10% ~ 90% | |||||
| MTBF | 10,000 hours | |||||
| Frame frequence | 50/60Hz | |||||
| Refresh frequence | >3000Hz | |||||
| IP grade | IP31 | |||||
| Life Span | 100,000 hours | |||||
| Data transafer method | RJ45 | |||||
| Pratical standard | CCC TUV-CE ETL etc. | |||||
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM | |||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | |||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | |||||
