Slim Thickness P3 Advertising LED Panel with Size 576X576mm

Slim Thickness P3 Advertising LED Panel for indoor advertising
With Size 576X576mm die-casting panel
Wide view angle and good uniformity
Quantity:
  • P3

  • Video Display

  • 1R,1G,1B

  • 1/16 Scan

  • LED Video Display

  • IP31

  • 576X576mm

  • 192X192mm

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 3mm

  • 111111dots/Sq.M

  • Win XP,Win 2000,Win7/8

  • Stage Performance, Advertising, Shopping Guide

  • CE, RoHS, CCC, FCC

  • Die-Casting Aluminum

  • 64X64dots

  • Flight Case or Wooden Case

  • Shenzhen

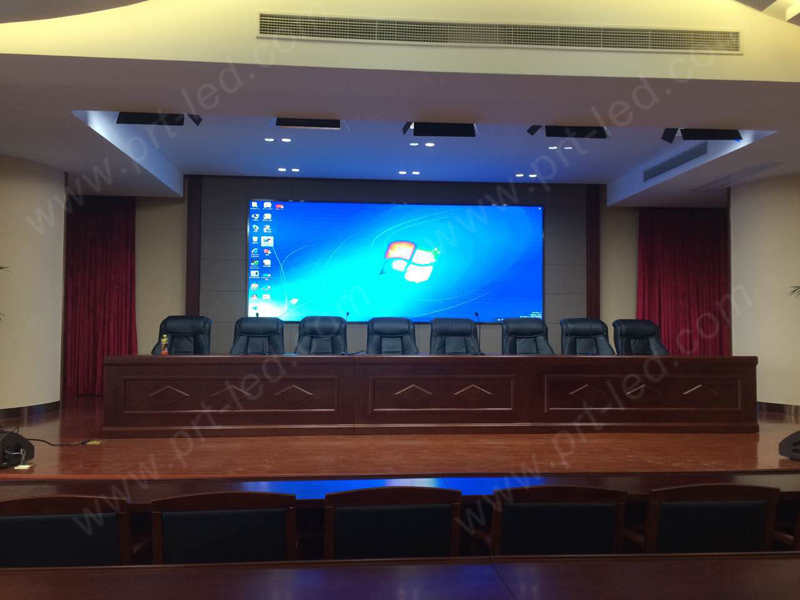

High resolution Indoor P3 LED Advertising Board with 576x576mm Die-casting Aluminum Cabinets for indoor rental use or fixed install

Product Features:

1. SMD2121 ensure the wide view angle(140 degree for horizontal and vertical),and high contrast up to 5000:1

2. Srong Die-casting cabinet configuration with good stability and durable, better for rental use

3. Small panel size of 576×576mm with light weight,easy to move and portable

4.With fast locks and aviation plugs,easy to install and dismantle

5.Seamless splicing,good uniformity and high definition

Slim Thickness P3 Advertising LED Panel with Size 576X576mm

Slim Thickness P3 Advertising LED Panel with Size 576X576mm



Slim Thickness P3 Advertising LED Panel with Size 576X576mm

Slim Thickness P3 Advertising LED Panel with Size 576X576mm
Slim Thickness P3 Advertising LED Panel with Size 576X576mm



P3 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 3mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 192mm x 192mm
Resolution of module 64x64
Size of cabinet 576mm x 576mm x 65mm
Resolution of cabinet 192x192dots
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 15KGS
Brightness >1200cd/sq.m
Density 111111dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
