Uhd Full Color LED Display Screen with Pixel Pitch 1.923mm

Quantity:
  • P1.923
  • PRT
  • 8528591090
  • P1.9-200x300mm
  • Video Display
  • 1R,1G,1B
  • 1/26 Scan
  • LED Video Display
  • IP43
  • Die-Casting Aluminum
  • 400X300mm
  • CE, FCC. ROHS, 3C
  • Full Color
  • 1.923mm
  • 270400dots/Sq.M
  • Win XP, Win 2000.Win7 Nt
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, ETL
  • SMD1010
  • 200X300mm
  • Flight Case or Wooden Case
  • Shenzhen
Hot Sale P1.923 Full Color Screen LED Panel for indoor with super slim the thickness is only 65mm at maximum,high gray scale, high contrast radio for perfect display

Product Features:

1. Die-casting Aluminum material cabinet keep strong configuration and light weight

2. Small panel size of 400×300mm can be used as a TV screen dividually

3. High definition,high refresh rate,high
 gray scale,keep the good performance

4. Seamless spliced,good uniformity, no fans no noise

5. More popular  and hot sale in the market, widely used in video meeting, TV, monitor and message board for precised display

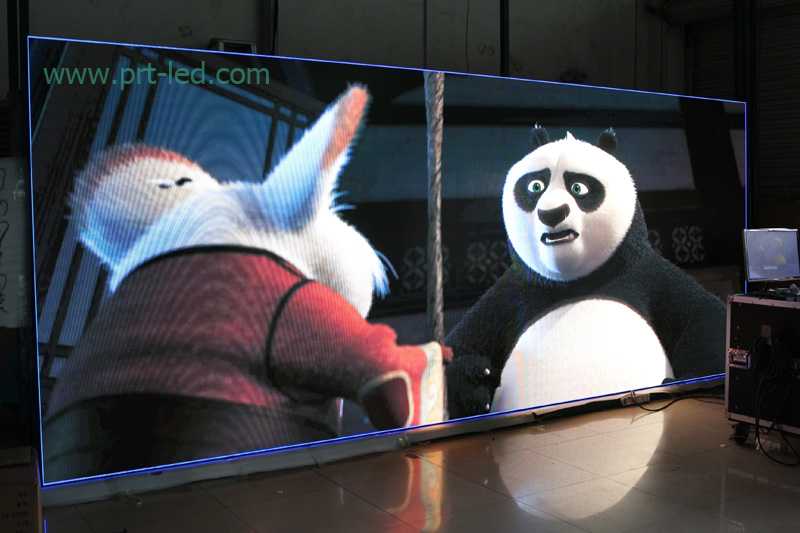

More pictures for reference:

Uhd Full Color LED Display Screen with Pixel Pitch 1.923mm
Uhd Full Color LED Display Screen with Pixel Pitch 1.923mm Uhd Full Color LED Display Screen with Pixel Pitch 1.923mm

Related parameters for reference,please contact us for details!
MODEL: PH1.923   200*300mm  SMD1010
 constant current driving
VERSION 1.0
DESCRIPTION: PH1.92 Indoor
No. Parameter Specification
1 Pixel Pitch(mm) 1.923
2 Pixel Density 270400pix/m⊃2;
3 LED Type SMD1010
4 LED Wave Length(nm) R:620-625/G:517.5-520/B:465-467.5
5 LED Luminous Intensity(mcd) R:100~130/G:120~156/B:20~26
6 Viewing Angle 16
7 Brightness 1000cd/m⊃2;
8 Drive Method 1/30 scan
9 Driving IC MBI5153
10 Color Depth 16bit
11 Refresh Rate(Hz) 2000
12 Frame Rate(Hz) ≥60
13 Brightness Adjustment Manual/Auto/Program
14 Module Size(mm) 200×300
15 Module Resolution(dots) 104×156
16 Cabinet Size(mm) 400×300
17 Cabinet Display Resolution(dots) 208×156
18 Cabinet Type and Material Die-casting Aluminum
19 Cabinet Weight(Kg) 4.6kg
20 Power Supply 5.0V 40A
21 Voltage(V) AC 220V
22 Avg. Power Consumption 1000W/m⊃2;
23 Max. Power Consumption 300W/m⊃2;
24 Service Access Back maintenance
25 IP Grade IP31
26 Operating Temp/Humidity -20ºC~50ºC, 10~90%RH
27 Storage Temp/Humidity -40ºC~60ºC, 10~90%RH
28 Lifetime(Normal Temp) ≥50000H
29 System Control Nova
30 Compliant Standard CCC,CE
