P16-DIP
IP65
1R, 1G, 1B
300W / m²
Static Scan
Advertising,Stage Performance,Rental
DIP 346
16X16dots
PRT
Shenzhen China
Full Color
16mm
Video Display
3906dots/Sq.M
LED Video Display
CE, RoHS, CCC, RoHS
256X256mm
1024X768mm
CE, FCC. ROHS, 3C
8528591090

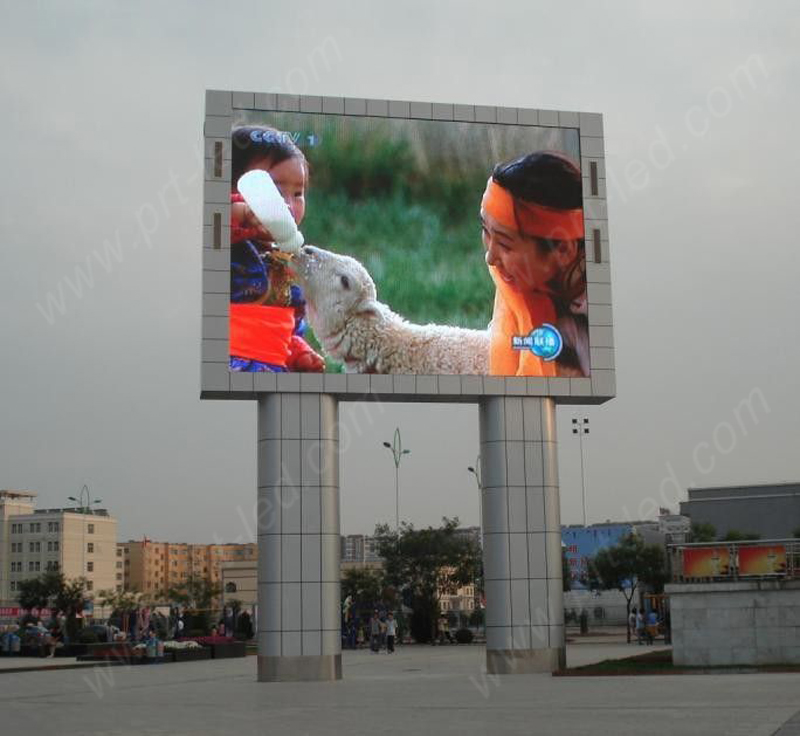

P16 Outdoor Full Color LED Display Main Parameters | ||
Visual Characteristics | Unit | Value |
Pixel Pitch | mm | 16.0 |
Pixel Density | Dots/sq.m | 3906 |
Pixel Configuration | DIP346 | |
Cabinet Resolution | dots | 64χ48 |
Refresh Rate | Hz | ≥3000 |
View Angle(H/V) | ° | 100/45 |
Brightness | nits | ≥7500 |
Gray Scale | Bit | 687Million |
IP Rating | 65 | |
Power Consumption(Max/Avg) | W/sq.m | 700/300 |
Input Voltage(AC) | V | 110~240 |
Modular Characteristics | ||
Cabinet Size(W×H×D) | mm | 1024x768 |
Cabinet Material | Iron | |
Cabinet Weight | Kg | |
Module Size(W×H) | mm | 256×256 |
Environment | ||
Operation Temperature | ºC | -20~+40 |
Operating Humidity | 10%~90% | |
Driving Mode | Static Scan | |
Control Distance | Cat 5E <100m,Single mode fiber<10Km |
P16 Outdoor Full Color LED Display Main Parameters | ||
Visual Characteristics | Unit | Value |
Pixel Pitch | mm | 16.0 |
Pixel Density | Dots/sq.m | 3906 |
Pixel Configuration | DIP346 | |
Cabinet Resolution | dots | 64χ48 |
Refresh Rate | Hz | ≥3000 |
View Angle(H/V) | ° | 100/45 |
Brightness | nits | ≥7500 |
Gray Scale | Bit | 687Million |
IP Rating | 65 | |
Power Consumption(Max/Avg) | W/sq.m | 700/300 |
Input Voltage(AC) | V | 110~240 |
Modular Characteristics | ||
Cabinet Size(W×H×D) | mm | 1024x768 |
Cabinet Material | Iron | |
Cabinet Weight | Kg | |
Module Size(W×H) | mm | 256×256 |
Environment | ||
Operation Temperature | ºC | -20~+40 |
Operating Humidity | 10%~90% | |
Driving Mode | Static Scan | |
Control Distance | Cat 5E <100m,Single mode fiber<10Km |
