768 * 768 mm Outdoor P6 Advertising LED Display Panel

P 6 Outdoor LED Display with Slim Panel 768 * 768 mm with light weight, high brightness and good waterproof,convenient for rental and fixed installation

Quantity:
  • P6
  • PRT
  • 8528591090

Full color P6 Outdoor LED Display with panel size 768 x 768 mm for outdoor permanent or rental use,with slim thickness aluminum material

Product features:

1. Waterproof IP65,good for outdoor rental,small size is available

2. SMD led encapsulation confirm wide view angle and slim thickness board

3. High brightness up to 6000nits,long view distance, Good uniformity

4. With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time

5. Die-casting cabinets confirm the strong configuration and lasting


6. Low power consumption, No fans,no noise created, energy-saving and good environment protection

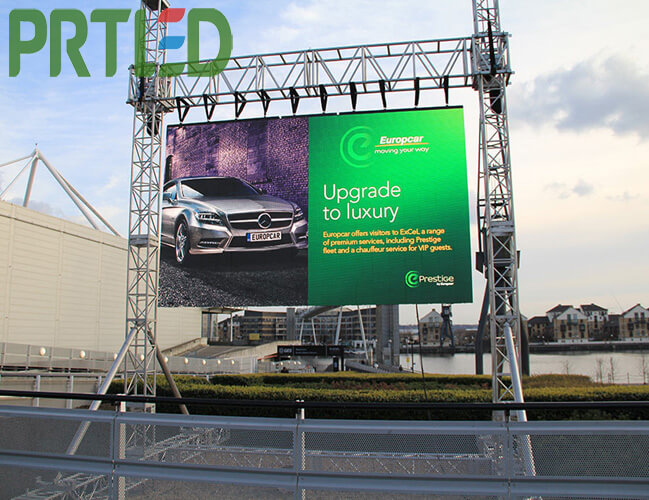

7. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want synchronously with PC

8. Widely used for commercial advertising,stage,show,event background screen,mobile led sign. traffic message board,sports stadium perimeter display etc.


P6 SMD3535 Outdoor full Color LED Screen Specification

Pixel pitch

6mm

Pixel Configuration

1R1G1B

LED component

SMD3535

Size of module

192mm x 192mm

Resolution of module

 32 x32dots

Weight of module

0.45kgs

Size of cabinet

768mm x 768mm x 75mm

Resolution of cabinet

128x128dots

Material of Cabinet

Die-casting aluminum

Weight of Cabinet

15KGS

Brightness

>6000cd/sq.m

Density

27777dots/sq.m

Best viewing angle

140 /140

Pixel Configuration

1R1G1B

Best viewing distance

5-60M

Maximum power consumption

1000W/sq.m

Average power consumption

560W/sq.m

Driving method

1/8 scan

Control method

Synchronization

Gray scale

65536

Colors

256*256*256

Color temperature

3200-9300k

Uniformity

97%

Working voltage

AC220V/110V±10%

Working temperature

—20~+50±10%

Working humidity

10  90

MTBF

10,000 hours

Frame frequence

50/60Hz

Refresh frequence

>1920Hz

IP grade

IP65

Life Span

100,000 hours

Data transafer method

RJ45

Pratical standard

CCC  TUV-CE  ETL etc.

Effectivce Communication
Distance(without relay)

Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM

Accepting signal with video processor

PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.

Systems operating platform

WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
