High Brightness SMD3535 Outdoor LED Display Panel for Video Advertising (P6, P8, P10)

high brightness outdoor led display P6,P8,P10 for outdoor advertising,with good waterproof,perfect display vision
Availability:
Quantity:
  • P6

  • PRTLED

  • 8528591090

P6 SMD3535 Full Color LED Display panel for outdoor advertising with high brightness,good waterproof and resonable cost,it is sold very well this year

Product Features:

1.SMD led encapsulation confirm wide view distance and good uniformity

2.High brightness,good waterproof IP65,anti-corrosion,anti-rust,long life span>100000hours

3.High pixel density, high resolution and high definition,perfect display vision

4.lower power consumption,good heat dissipation,low noise created.

5.With Rental design Cabinet with locks,connectors,easy and quick to assemble without tools in short time

6.Widely used for commercial display,advertising, stage background,mobile display. traffic display,sports led display etc.


More pictures:

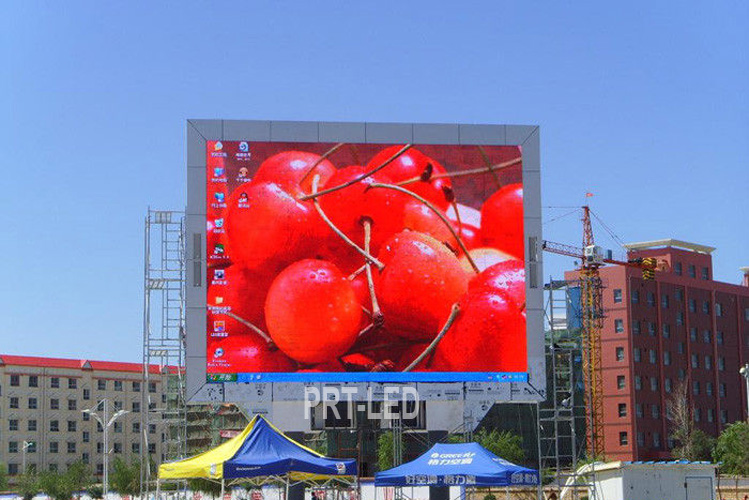

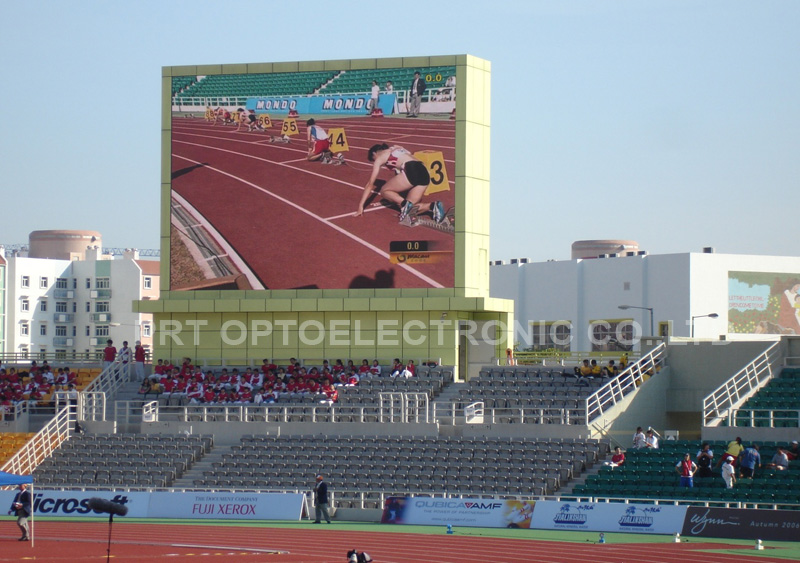

High Brightness SMD3535 Outdoor LED Light Panel for Video Advertising (P6, P8, P10)

High Brightness SMD3535 Outdoor LED Light Panel for Video Advertising (P6, P8, P10)
High Brightness SMD3535 Outdoor LED Light Panel for Video Advertising (P6, P8, P10)

High Brightness SMD3535 Outdoor LED Light Panel for Video Advertising (P6, P8, P10)
High Brightness SMD3535 Outdoor LED Light Panel for Video Advertising (P6, P8, P10)

High Brightness SMD3535 Outdoor LED Light Panel for Video Advertising (P6, P8, P10)


P6 SMD3535 Outdoor full Color LED Screen Specification
Pixel pitch 6mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 192mm x 192mm
Resolution of module  32 x32
Size of cabinet 768mm X 768mm x 150mm/960mm x 960mm x 150mm
Resolution of cabinet 160x160
Material of Cabinet Iron/Aluminum
Weight of Cabinet 30/45KGS
Brightness >6000cd/sq.m
Density 27777dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 5-60M
Maximum power consumption 1000W/sq.m
Average power consumption 560W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
