High Brightness P10 Outdoor Led Screen Full Color LED Video Wall with Front Service Module 320x320mm

front access P10 outdoor led screen with high brightness DIP 346 led modules 320x320mm,brightness up 9000nits,long view distance and goog waterproof
Availability:
Quantity:
  • DIP P10

  • PRTLED

  • 8528591090

Outdoor P10 Full Color LED Display with DIP LED modules 320x320mm,front service,save much back space and easy to move out to save labor cost

Product Features:

1.High quality led chips ensure high brightness up 8500nits

2.Good waterproof IP65 with back doors,don't need any other protection for outdoor use

3.Long view distance, High definition, Good uniformity,can be seen from long away even under sunshine

4. With aviation plugs for cables connection, easy and conveninet to combine the cabinets

5. Low power consumption, energy-saving, long life span>100,000Hours

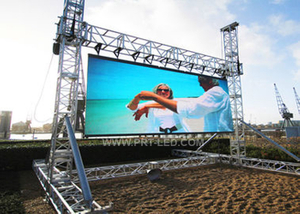

6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the contents what you want, connect with PC computer or network, also can remoto control with asynchronous system.

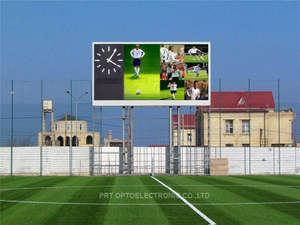

7. Widely used for commercial advertising, stage background, mobile led display. Traffic led display, sports led display etc.for permanent install or rental use

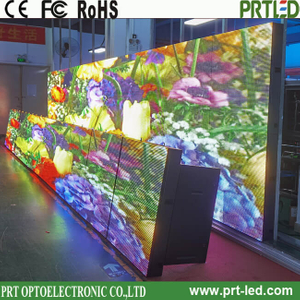

DIP P10-008

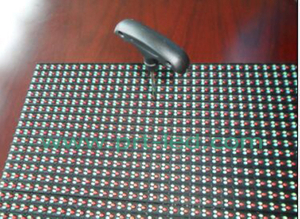

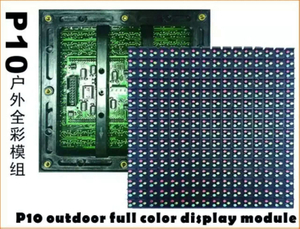

P10mm LED Outdoor Panels with High Brightness DIP346 Front Access Modules

P10mm LED Outdoor Panels with High Brightness DIP346 Front Access Modules
P10mm LED Outdoor Panels with High Brightness DIP346 Front Access Modules

P10mm LED Outdoor Panels with High Brightness DIP346 Front Access Modules
P10mm LED Outdoor Panels with High Brightness DIP346 Front Access Modules






P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component DIP346
Size of module 320mm x 320mm
Resolution of module 32x32
Size of cabinet 960mmx 960mm x150mm
Resolution of cabinet 96x96dots
Material of Cabinet Iron with back doors
Weight of Cabinet <52 KGS
Brightness >8500cd/m2
Density 10000dots/m2
Best viewing angle 110 /50
Best viewing distance 10-150M
Maximum power consumption <900W/m2
Average power consumption <300W/m2
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V&plusmn;10%
Working temperature -20&ordm;C~+50&ordm;C&plusmn;10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
