P3.33
PRTLED
8528591090
High resolution P3.33 LED Display panel,led Billboard for floor standing advertising, double sides or single face, good waterproof, can be shown with videoes and images controlled by internet,3G/4G, Wifi,and size can be customized
Product Advantages:
1. Intelligent control: with LAN, WIFI, 3G intelligent management module inside, can control the screen as your convenient, change the display content as you want
2. Saving time and labor: once the screen is installed successfully, the advertising content can change at any time as request, don't like the traditional static billboards need to be dissambled frequently, save the working time and labor cost, and control the advertising contents easily.
3.High waterproof IP level: with front IP65 and back IP65, good waterproof, can be used outdoor with any weather

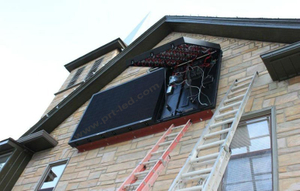

4. Easy maintenance: Side open and back maintenance for option, and dot to dot maintenance, easy and quickly
5.SMD led encapsulation confirm the good uniformity and high definition
6. Can be done with single side or double sides
P3.33 Smart LED Panel DIisplay Specifiction | |
产品型号 Part Number | P3.33 |
像素间距 Pixel Pitch | 3.33mm |
像素构成 LED Configuration | SMD1921 |
像素密度 Pixel Density | 90010 dot/m2 |
模组尺寸 Module size | 160*160mm |
模组分辨率 Module Resolution | 48*48 dots |
屏体显示尺寸（Panel display size) | W 640 x H 800 mm or customized |
箱体尺寸 Cabinet Size | W 690 x H 960 x D170mm |
重量 Cabinet Weight | 55 kg |
防水等级 IP Rating ( front/back) | IP65 |
亮度水平 Brightness Intensity | >6000 CD/m2 |
可视角度 Viewing Angle (H/V) | 140°/140° |
观看距离 View Distance | ＞4m |
灰度等级 Gray Scale | 14bit |
色彩种类 Display Scale | 16.7M |
亮度调节 Brightness Adjustment | 0-100 levels adjustable |
最大功率 Max.Power Consumption | 880W/㎡ |
平均功率 Ave.Power Consumption | 270W/㎡ |
扫描方式 Drive Mode | 1/12S |
刷新率 Refresh Frequency | ≥1920HZ |
伽马系数 Gamma Correction | -5.0~+5.0 |
使用环境 Environmental | OUTDOOR |
控制方式 Control Mode | Asynchronous ( WIFI,4G,USB ) |
支持信号输入类型 Support Input | Composite,S-Video,Component,VGA,DVI,HDMI,HD_SDI |
输入电源 Operation Power | AC100~240 50/60HZ |
工作温度 Operating Temperature | -20℃~+50℃ |
工作湿度 Operating Humidity | 10~95% RH |
工作寿命 Operating Life | 100,000hours |
