High Brightness Full Color Video Advertising LED Screen of Outdoor P8 (P10, P6, P5)

Quantity:
  • P8mm
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/4 Scan
  • Advertising
  • SMD3535
  • 1024*768mm
  • IP65
  • Wooden Case or as Required
  • Shenzhen China
  • Full Color
  • 8mm
  • Video Display
  • 15625dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC, ETL
  • 256*128mm
  • Steel Iron
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
Full Color P8 LED Screen for outdoor advertising,made with SMD3535 1/4 scan modules,high brightness and good uniformity,good waterproof. assembled with strong iron cabinet for permanent install

Product features:


1.With the best LED industrial waterproof and ultraviolet-proof SMD 3 in 1 technology, confirm the super wide view angle and better evenness surface and stability

2.RGB high gray processing to show real and rich colors

3.Support point correction function, ensure the consistency of the color and the brightness during the usage

4.Accurate,shortcut flexile installation, can be applied to any different environment

5.With protection grade of IP65,suit to any bad weather

6.With professional aviation plugs as connector,ensure the quality and safety

7. Complete series, accept customized, cabinet sizes can be customized as different request from projects

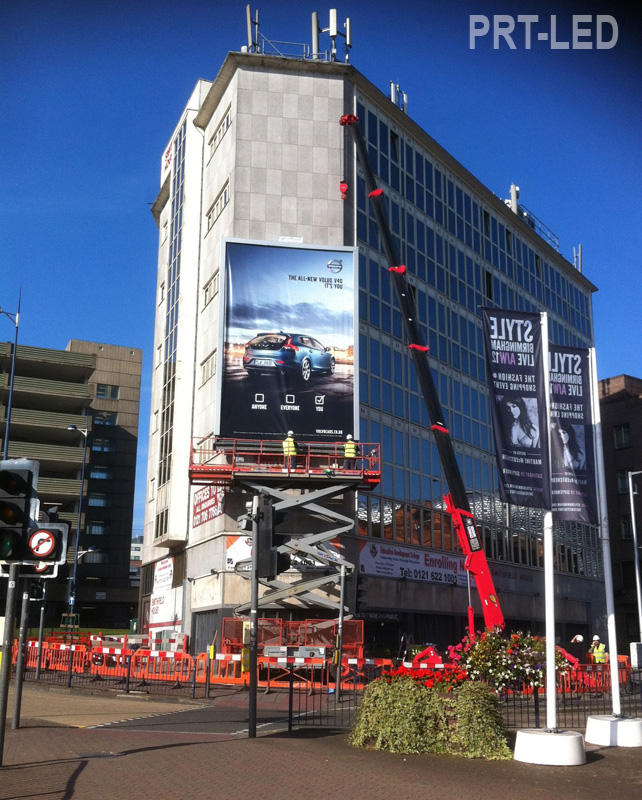

Product detail pictures for reference:
High Brightness Full Color Video Advertising LED Screen of Outdoor P8 (P10, P6, P5)High Brightness Full Color Video Advertising LED Screen of Outdoor P8 (P10, P6, P5)


High Brightness Full Color Video Advertising LED Screen of Outdoor P8 (P10, P6, P5)

High Brightness Full Color Video Advertising LED Screen of Outdoor P8 (P10, P6, P5) High Brightness Full Color Video Advertising LED Screen of Outdoor P8 (P10, P6, P5)


P8 Outdoor full Color LED Screen Specification
Pixel pitch 8mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 256mm x 128mm
Resolution of module 32x16dots
Size of cabinet 1024mm x 768mm x 150mm
Resolution of cabinet 128 x96dots
Material of Cabinet Steel Iron/Aluminum
Weight of Cabinet <40KGS
Brightness >6500cd/sq.m
Density 15625dots/sq.m
Best viewing angle 140 /140
Best viewing distance 8-100M
Maximum power consumption <1000W/sq.m
Average power consumption <300W/sq.m
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
