DIP346 Epistar P10 LED Display Screen with 1280X960mm/960X960mm

Quantity:
  • P10-DIP346
  • IP65
  • 1R, 1G, 1B
  • 300W / m⊃2;
  • 1/4 Scan
  • Advertising, Stage Performance, Rental
  • DIP 346
  • 960X960mm
  • IP65
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 10mm
  • Video Display
  • 10000 dot / m⊃2;
  • LED Video Display
  • CE, RoHS, CCC
  • 160X160mm
  • >8000nits
  • PRT
  • Shenzhen China

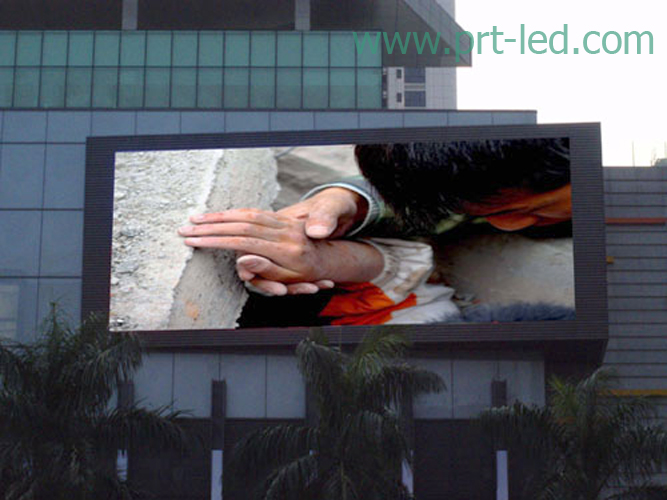

High Definition P10 Full Color Outdoor LED Display Screen for outdoor permanent install,with high brightness up to 8000nits, good stability,good display performance and cheap cost



Product Features:

1.DIP led encapsulation confirm the high brightness even under sunlight

2.Good waterproof IP65,,anti-corrosion,antifogging,long life span >100000Hours

3.Steel Iron cabinet with strong configuration, stability and can stand singly without any support

4.Brightness can be adjusted automatically according to different surrondings,
can be set to open and close the screen on fixed automatically

5.Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto controlled with asynchronous system.

6.Widely used for commercial display, stage background screen,mobile advertising display. traffic sign board,rental led display, sports perimeter message display etc.




Related Parameters as following for learn more about our products

P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component DIP346(Epsitar chips)
Size of module 160mm x 160mm
Resolution of module 16x16
Size of cabinet 960mmx960mmx150mm/1280mmx 960mm x 150mm
Resolution of cabinet 96x96/128x96
Material of Cabinet Iron with back doors
Weight of Cabinet <80KGS
Brightness >8000cd/m⊃2;
Density 10000dots/m⊃2;
Best viewing angle 110 /50
Best viewing distance 10-150M
Maximum power consumption <1000W/m⊃2;
Average power consumption <300W/m⊃2;
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
