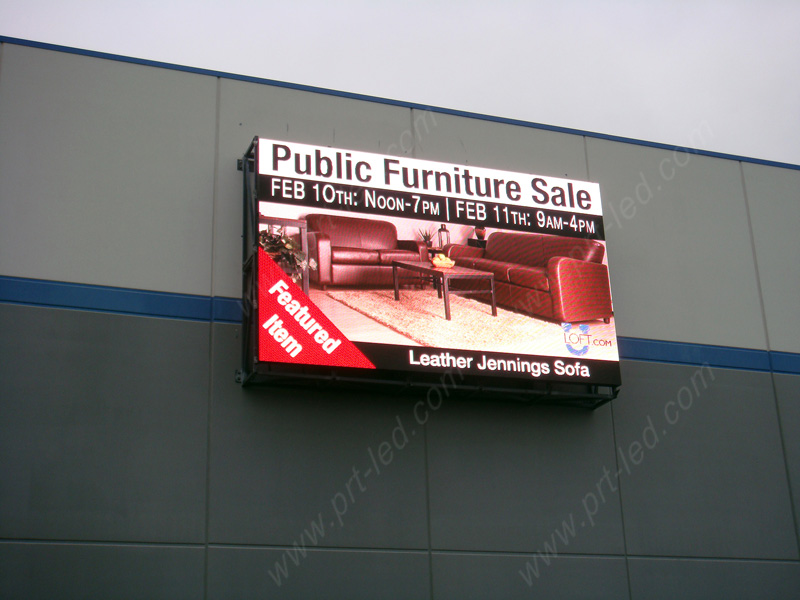

Front/Rear Access Full Color LED Display of Outdoor P10 (DIP346)

Quantity:
  • P10-DIP346

  • IP65

  • 1R, 1G, 1B

  • 300W / m²

  • 1/4 Scan

  • Advertising, Stage Performance, Rental

  • DIP346

  • 32X32dots

  • PRT

  • CE, FCC. ROHS, 3C

  • 8528591090

  • Full Color

  • 10mm

  • Video Display

  • 10000 dot / m²

  • LED Video Display

  • CE, RoHS, CCC

  • 320X320mm

  • >8500nits

  • Wooden Case or as Request

  • Shenzhen China

Fast-maintenance Outdoor P10 Full Color LED Display, can be maintained from both front and back side according to different condition,very convenient and easily , save much labor cost

Product Features:

1.High quality led chips ensure high brightness up to 8500nits

2.Good waterproof IP65, with back doors

3.Long view distance, High definition, Good uniformity,can be seen from long away even under sunshine

4. With aviation plugs for cables connection, easy and conveninet to combine the cabinets

5. Low power consumption, energy-saving, long life span>100,000Hours

6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the contents what you want, connect with PC computer or network, also can remoto control with asynchronous system.

7. Widely used for commercial advertising, stage background, mobile led display. Traffic led display, sports led display etc.for permanent install or rental use
Front/Rear Access Full Color LED Display of Outdoor P10 (DIP346)

Front/Rear Access Full Color LED Display of Outdoor P10 (DIP346)
Front/Rear Access Full Color LED Display of Outdoor P10 (DIP346)

Front/Rear Access Full Color LED Display of Outdoor P10 (DIP346)
Front/Rear Access Full Color LED Display of Outdoor P10 (DIP346)

Front/Rear Access Full Color LED Display of Outdoor P10 (DIP346)



P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component DIP346(Epistar)
Size of module 320mm x 320mm
Resolution of module 32x32
Size of cabinet 960mmx 960mm x150mm
Resolution of cabinet 96x96dots
Material of Cabinet Iron with back doors
Weight of Cabinet <60KGS
Brightness >8500cd/m2
Density 10000dots/m2
Best viewing angle 110 /50
Best viewing distance 10-150M
Maximum power consumption <900W/m2
Average power consumption <300W/m2
Driving method 1/4 scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
