Full Color Video Screen/Outdoor Advertising LED Display (DIP P10, P16)

Quantity:



Inquire Add to Basket

Model NO.:
P10
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
300W / m⊃2;
Scanning Mode:
1/4 Scan
Application:
Advertising, Stage Performance, Rental
LED Encapsulation:
DIP 346 (Epsitar)
Waterproof IP:
IP65
Trademark:
PRT
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
10mm
Display Function:
Video Display
Pixel Density:
10000 dot / m⊃2;
Display Type:
LED Video Display
Certification:
CE, RoHS, CCC
Module Size:
160X160mm
Brightness:
> 8000nits
Transport Package:
Wooden Case or as Required
Origin:
Shenzhen China

Product Description

P10 Full color video LED Display for outdoor advertising is a classical product with stability technoloby, High brightness,competitive price,CE,FCC,Rohs certificates,3 years warranty

Product features:

1. DIP led encapsulation confirm high brightness even under sunlight and bad weather

2.Good waterproof IP65 for front and IP54 for rear ,anti-corrosion,antifogging, long life span>100000Hours

3. High brightness up to 8000nits, Long view distance from 100M away

4.Made with high quality Epistar leds keep high quality, low lighting decay, energy saving

5. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically

6. Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system,like USB,wifi,3G/4G

7.Cabinet material can be choosed with aluminum or iron, and size can be customized according different projects

More pictures for understanding well:

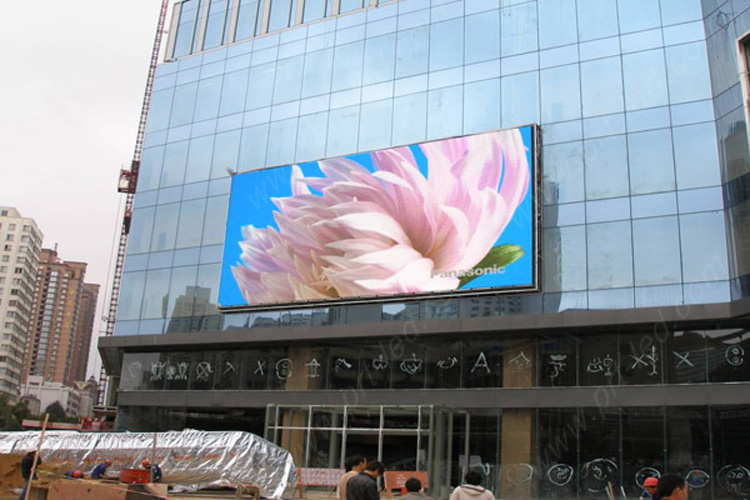

Full Color Video Screen/Outdoor Advertising LED Display (DIP P10, P16)

Full Color Video Screen/Outdoor Advertising LED Display (DIP P10, P16)

P10 DIP Outdoor full Color LED Screen Specification
Pixel pitch			10mm
Size of module			160mm x 160mm
Resolution of module			16*16
Size of cabinet			800mm x 800mm x 150mm or 960mm x 960mm(also can other sizes)
Resolution of cabinet			80 x 80 or 96x96
Weight of Cabinet			45 or 60
Brightness			>7500cd/m⊃2;
Density			10000dots/m⊃2;
Best viewing angle			110 /50
Pixel Configuration			1R1G1B
Best viewing distance			8-100M
Maximum power consumption			<1000W/m⊃2;
Driving method			1/4 scan
Control method			Synchronization
Gray scale			16 bits
Colors			16777216
Color temperature			6500k
Working voltage			AC220V±10%
Working temperature			-20ºC~+50ºC±10%
Maintenance			Rear Access
MTBF			5,000 hours
Frame frequence			≥60Hz
Refresh frequence			>1800Hz
IP grade(Front/Back)			IP65/IP54
Life Span			100,000 hours
Data transafer method			RJ45(DVI)
Effectivce Communication Distance(without relay)			Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor			PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
Systems operating platform			WINDOWS(WIN95,WIN2000,WINXP,WIN7/8), and interfaces for secondary development
