HD Full Color P4 LED Screen for Outdoor Video Display (waterproof IP65)

Quantity:
  • P4
  • IP65
  • 1R, 1G, 1B
  • 600W / m⊃2;
  • 1/16 Scan
  • Advertising, Stage Performance, Rental
  • 512X512mm
  • 256X128mm
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 4mm
  • Video Display
  • 62500dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC, FCC
  • Iron or Aluminum
  • 64X32dots
  • Flight Case or Wooden Case
  • Shenzhen
P4 full color led screen for outdoor display with high definition,closed view distance, high brightness and good waterproof

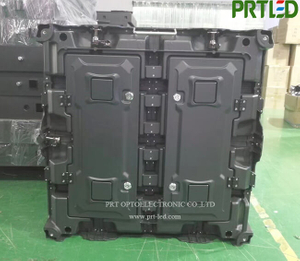

1. Made with iron or aluminum material,small cabinet size with light weight and strong configuration

2. Rental design, easy to install and dismantle without any tools, save much time

3. Can be suspend on truss or fixed installation, Seamless spliced, good uniformity

4. Wide view angle, over 140 degree for horizontal and vertical

5.Lower power consumption, good heat dissipation

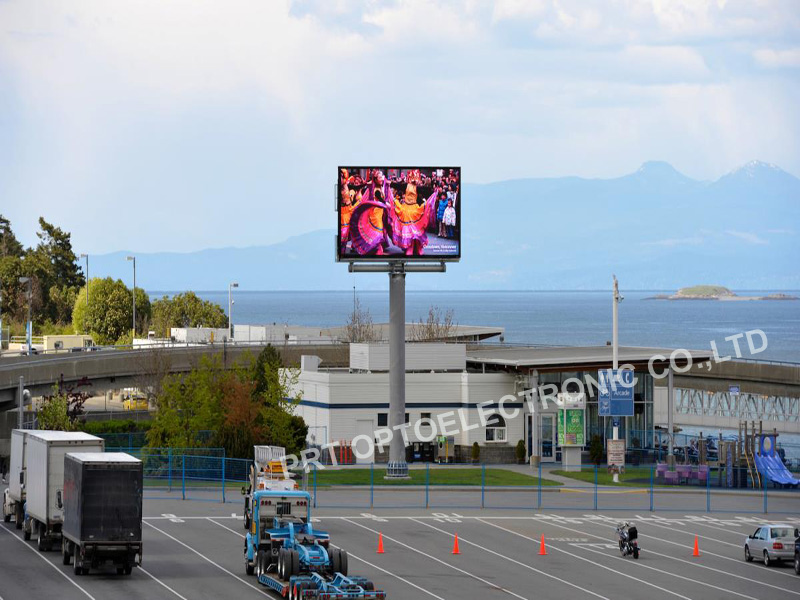

6.Widely used in public advertising, event, live show, banquet, stage background,etc.


HD Full Color P4 LED Screen for Outdoor Video Display (waterproof IP65)
HD Full Color P4 LED Screen for Outdoor Video Display (waterproof IP65) HD Full Color P4 LED Screen for Outdoor Video Display (waterproof IP65)
HD Full Color P4 LED Screen for Outdoor Video Display (waterproof IP65) HD Full Color P4 LED Screen for Outdoor Video Display (waterproof IP65)



P4 SMD1921 Indoor full Color LED Screen Specification
Pixel pitch 4mm
Pixel Configuration 1R1G1B
LED component SMD1921
Size of module 256mm x 128mm
Resolution of module 64x32dots
Size of cabinet 512mm x 512mm x 150mm
Resolution of cabinet 128x128dots
Material of Cabinet Iron/Aluminum
Weight of Cabinet 15KGS
Brightness >6000cd/sq.m
Density 62500dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1000W/sq.m
Average power consumption 600W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
