High Brightness P10 Full Color Outdoor LED Display Screen with Low Price

Quantity:



Inquire Add to Basket

Model NO.:
P10-DIP
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
300W / m⊃2;
Scanning Mode:
1/4 Scan
Application:
Advertising, Stage Performance, Rental
LED Encapsulation:
DIP 346
Cabinet Size:
960X960mm
IP Grade:
IP65
Specification:
CE, FCC. ROHS, 3C
HS Code:
8528591090
Tube Chip Color:
Full Color
Pixel Pitch:
10mm
Display Function:
Video Display
Pixel Density:
10000 dot / m⊃2;
Display Type:
LED Video Display
Certification:
CE, RoHS, CCC
Module Size:
160X160mm
Brightness:
>8000nits
Trademark:
PRT
Origin:
Shenzhen China

Product Description

High Definition P10 Full Color Outdoor LED Display Screen for outdoor permanent install,with high brightness up to 8000nits, good stability,low cost but good display performance

Product Features:

1.DIP led encapsulation confirm the high brightness even under sunlight

2.Good waterproof IP65, ,anti-corrosion,antifogging, long life span >100000Hours

3.Steel Iron cabinet with strong configuration, stability and can stand singly without any support

4.Brightness can be adjusted automatically according to different surrondings,
can be set to open and close the screen on fixed automatically

5.Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto controlled with asynchronous system.

6.Widely used for commercial display, stage background screen,mobile advertising display. traffic sign board,rental led display, sports perimeter message display etc.

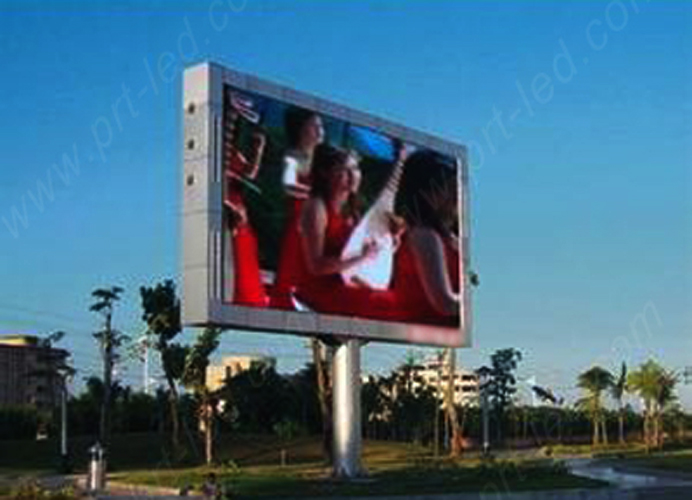

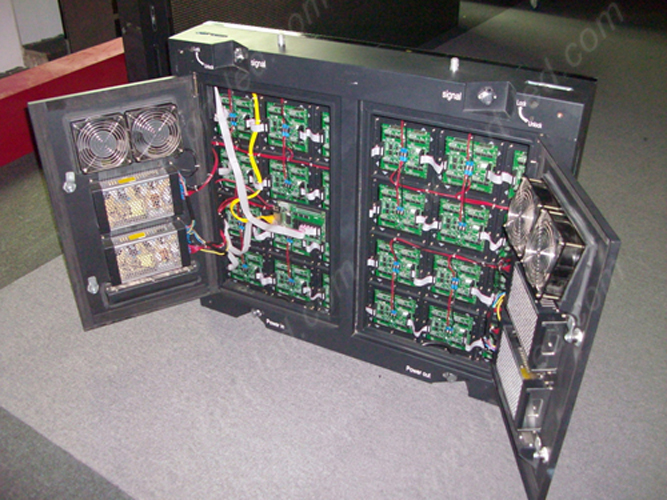

Please see more pictures for reference:

High Brightness P10 Full Color Outdoor LED Display Screen with Low Price

High Brightness P10 Full Color Outdoor LED Display Screen with Low Price

Related Parameters as following for learn more about our products

P10 Outdoor full Color LED Screen Specification
Pixel pitch			10mm
Pixel Configuration			1R1G1B
LED component			DIP346(Epsitar chips)
Size of module			160mm x 160mm
Resolution of module			16x16
Size of cabinet			960mmx960mmx150mm/1280mmx 960mm x 150mm
Resolution of cabinet			96x96/128x96
Material of Cabinet			Iron with back doors
Weight of Cabinet			<80KGS
Brightness			>8000cd/m⊃2;
Density			10000dots/m⊃2;
Best viewing angle			110 /50
Best viewing distance			10-150M
Maximum power consumption			<1000W/m⊃2;
Average power consumption			<300W/m⊃2;
Driving method			1/4 scan
Control method			Synchronization
Gray scale			65536
Colors			256256256
Color temperature			3200-9300k
Uniformity			97%
Working voltage			AC220V/110V±10%
Working temperature			-20ºC~+50ºC±10%
Working humidity			10% ~ 90%
MTBF			10,000 hours
Frame frequence			50/60Hz
Refresh frequence			>1800Hz
IP grade			IP65
Life Span			100,000 hours
Data transafer method			RJ45
Pratical standard			CCC TUV-CE ETL etc.
Effectivce Communication Distance(without relay)			Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Accepting signal with video processor			PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform			WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
