High Definition P5 Full Color LED Video Display for Indoor

Quantity:
  • P5 board
  • Video Display
  • 1R,1G,1B
  • 1/16 Scan
  • LED Video Display
  • IP43
  • 640X640mm
  • 160X160mm
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 5mm
  • 40,000 dots / m⊃2;
  • Win XP,Win 2000,Win7/8
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, FCC
  • SMD3528
  • 32X32dots
  • Wooden Case
  • Shenzhen
High Definition P5 Full Color LED Advertising Display for indoor permanent install or rental use, with iron or Aluminum cabinet, stability and durability, cheaper cost but good performance

1..SMD leds ensure low power consumption and wide view angle

2.Slim modules confirm thin cabinets and light weight,save cost for transporting

3.With fast locks and aviation plugs,easy and quickly to install and dismantle

4.Seamless splicing, good uniformity, good vision performance

5.Wide view angle and close view distance, friendly to eyes

6.CE, FCC, RoHs confirm the high quality

7. 2 years warrantly

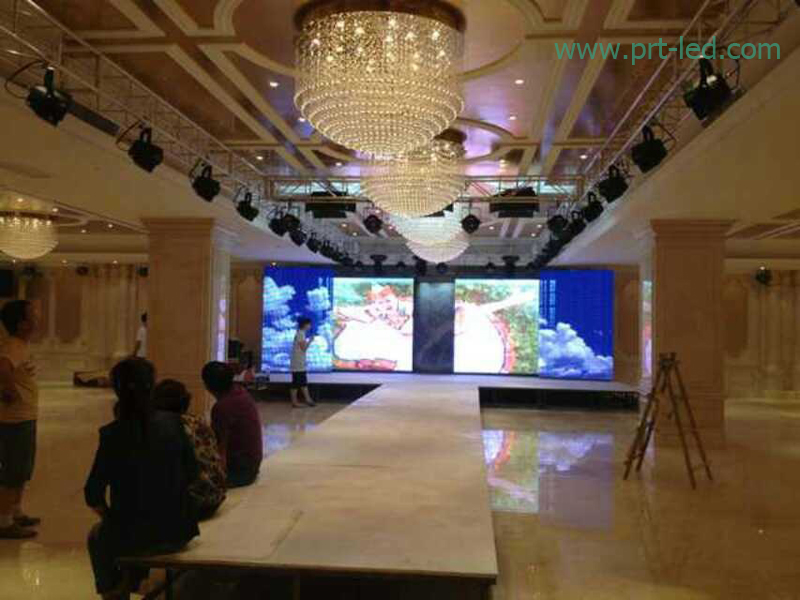

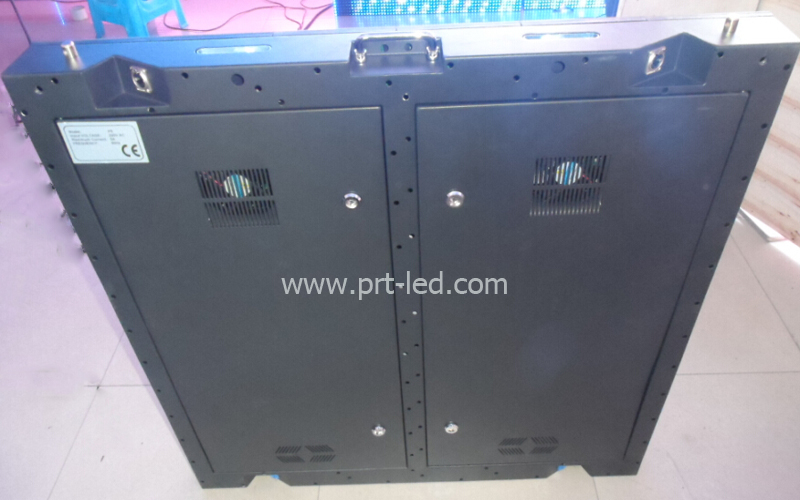

Cabinet pictures for reference:
High Definition P5 Full Color LED Video Display for Indoor

High Definition P5 Full Color LED Video Display for Indoor

High Definition P5 Full Color LED Video Display for Indoor

High Definition P5 Full Color LED Video Display for Indoor

High Definition P5 Full Color LED Video Display for Indoor
High Definition P5 Full Color LED Video Display for Indoor

P5 SMD3528 Indoor full Color LED Screen Specification
Pixel pitch 5mm
Pixel Configuration 1R1G1B
LED component SMD3528
Size of module 160mm x 160mm
Resolution of module 32x32
Size of cabinet 640mm x 640mm x 150mm
Resolution of cabinet 128x128
Material of Cabinet Iron/Aluminum
Weight of Cabinet 13KGS
Brightness >1500cd/sq.m
Density 40000dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 5-60M
Maximum power consumption 1000W/sq.m
Average power consumption 300W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP43
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
