P2.0
PRT
8528591090

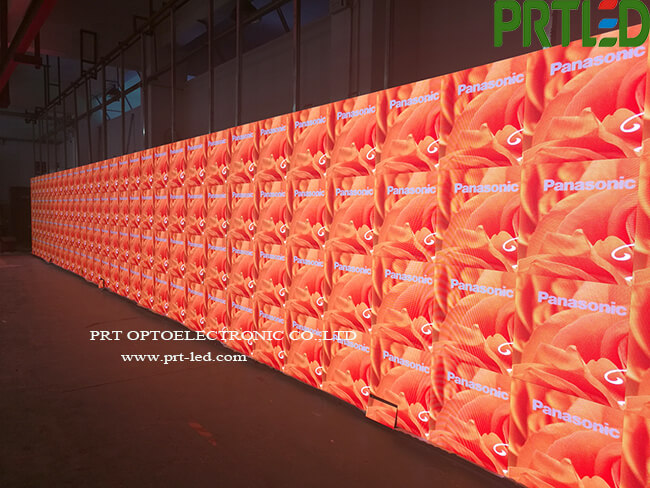

HD P2.0 led display screen for indoor advertising,high gray scale,
good ghost elimination technology for perfect display vision
1.SMT led encapsulation ensure the wide view angle and good uniformity
2.Combined with 4 layers driving PCB Board confirm good quality and long life time
3.Black body led lamps confirm the high contrast ratio,high definition
4. High refresh rate driving IC ensure high refresh rate and display vision,not stroble
5.Die-cast Aluminum material,keep strong configuration and good heat dissipation
6.Packed with flight case,easy to collect and can move to anywhere
7.With fast locks and aviation plugs,easy to install and dismantle
8.Seamless splicing,good performance
P2 Indoor full Color LED Screen Specification | |
Pixel pitch | 2mm |
Pixel Configuration | 1R1G1B |
LED component | SMD1010 black or SMD1515 |
Size of module | 256mm x 128mm |
Resolution of module | 128 x64 pixels |
Size of cabinet | 512mm x 512mm x 75mm |
Resolution of cabinet | 256 x 256 pixels |
Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 8.0 KGS |
Brightness | <1500cd/㎡ |
Density | 250000dots/㎡ |
Best viewing angle | 160 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 2-30M |
Maximum power consumption | 1200W/㎡ |
Average power consumption | 640W/㎡ |
Driving method | 1/32 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256 x 256 x 256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC220V/110V±10% |
Working temperature | —20℃~+50℃±10% |
Working humidity | 10％ ～ 90％ |
MTBF | 10,000 hours |
Frame frequence | 50/60Hz |
Refresh frequence | >3000Hz |
IP grade | IP31 |
Life Span | 100,000 hours |
Data transafer method | RJ45 |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
