P2.5
PRT
8528591090

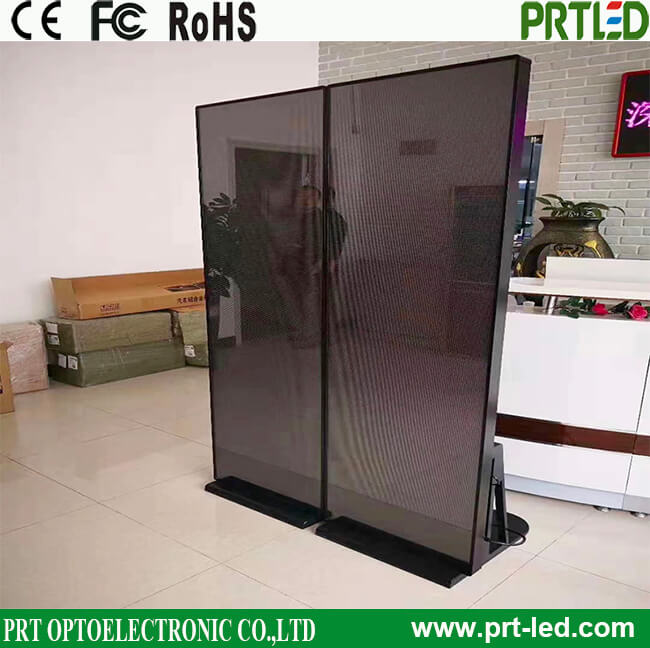

HD P2.5 Full Color LED Display Sign for Indoor advertising with ultra slim aluminum frame,Smart/Inteligent system
Product Features:
1.High resolution:169344pixels per panel
2.Wide view angle: 160°/160° for horizontal and vertical
3.High definition and high contrast ratio 3000:1,support 720P and 1080P videos
4.Ultra slim and lightweight: only with 35mm,and 35kgs for weight,portable and easy to move
5.Intelligent management:enable to connect with PC or Android devices from a single location via RJ45,WIFI,3G,USB and HDMI
6.High refresh rate: up 3000hz and brightness adjustable(600~1200nits)
7.Front service ability:module replacement from front side with a handle magnet
8.Widely usage:apply to shopping mall,cinema,bars,banks,luxury goods stores,airport,exhibition hall,conference room,hospitals,squares,concoures etc.
9.Large storage: 5GB of built-in storage supporting almost all video and image formates
10.Plug and play with zero configuration,update digital content at any time through wifi,USB.
11.Multiple installation methods: fold-out stand and wall-mounting options
P2.5 SMD Indoor full Color LED Poster Specification
| Pixel pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD2121/SMD2020 |
| Size of module | 160mm x 160mm |
| Resolution of module | 64 x 64 dots |
| Panel size | 1920mm x 640mm x 35mm |
| Resolution of panel | 768 x 256 |
| Material of Cabinet | Aluminum |
| Weight of Cabinet | 35KGS |
| Brightness | <1200cd/sq.m |
| Density | 160000dots/sq.m |
| Best viewing angle | 160° /160° |
| Best viewing distance | 2-30M |
| Maximum power consumption | 600W/panel |
| Average power consumption | 200W/panel |
| Driving method | 1/28 scan |
| Control method | Synchronization/Asynchronous |
| Gray scale | 12bits |
| Colors | 4.4 trillion |
| Contrast ratio | 3000:1 |
| Connect type | Internet/WIFI/3G/USB |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >3000Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Signal output | HDMI |
| Support VGA mode | 224 x 756 |
| Support video files | MP4 and more |
| Pratical standard | CE |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
HD P2.5 Full Color LED Display Sign for Indoor advertising with ultra slim aluminum frame,Smart/Inteligent system
Product Features:
1.High resolution:169344pixels per panel
2.Wide view angle: 160°/160° for horizontal and vertical
3.High definition and high contrast ratio 3000:1,support 720P and 1080P videos
4.Ultra slim and lightweight: only with 35mm,and 35kgs for weight,portable and easy to move
5.Intelligent management:enable to connect with PC or Android devices from a single location via RJ45,WIFI,3G,USB and HDMI
6.High refresh rate: up 3000hz and brightness adjustable(600~1200nits)
7.Front service ability:module replacement from front side with a handle magnet
8.Widely usage:apply to shopping mall,cinema,bars,banks,luxury goods stores,airport,exhibition hall,conference room,hospitals,squares,concoures etc.
9.Large storage: 5GB of built-in storage supporting almost all video and image formates
10.Plug and play with zero configuration,update digital content at any time through wifi,USB.
11.Multiple installation methods: fold-out stand and wall-mounting options
P2.5 SMD Indoor full Color LED Poster Specification
| Pixel pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD2121/SMD2020 |
| Size of module | 160mm x 160mm |
| Resolution of module | 64 x 64 dots |
| Panel size | 1920mm x 640mm x 35mm |
| Resolution of panel | 768 x 256 |
| Material of Cabinet | Aluminum |
| Weight of Cabinet | 35KGS |
| Brightness | <1200cd/sq.m |
| Density | 160000dots/sq.m |
| Best viewing angle | 160° /160° |
| Best viewing distance | 2-30M |
| Maximum power consumption | 600W/panel |
| Average power consumption | 200W/panel |
| Driving method | 1/28 scan |
| Control method | Synchronization/Asynchronous |
| Gray scale | 12bits |
| Colors | 4.4 trillion |
| Contrast ratio | 3000:1 |
| Connect type | Internet/WIFI/3G/USB |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >3000Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Signal output | HDMI |
| Support VGA mode | 224 x 756 |
| Support video files | MP4 and more |
| Pratical standard | CE |
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
