Shenzhen Factory Video LED Display of Indoor P3 (advertising 480*480mm panel)

Quantity:
  • P3
  • Video Display
  • 1R,1G,1B
  • 1/16 Scan
  • LED Video Display
  • IP31
  • 480X480mm
  • SMD2121
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 3mm
  • 111111ots/Sq.M
  • Win XP,Win 2000,Win7/8
  • Stage Performance, Advertising, Shopping Guide
  • CE, RoHS, CCC, FCC
  • Die-Cast Aluminum
  • Black
  • Flight Case or Wooden Case
  • Shenzhen

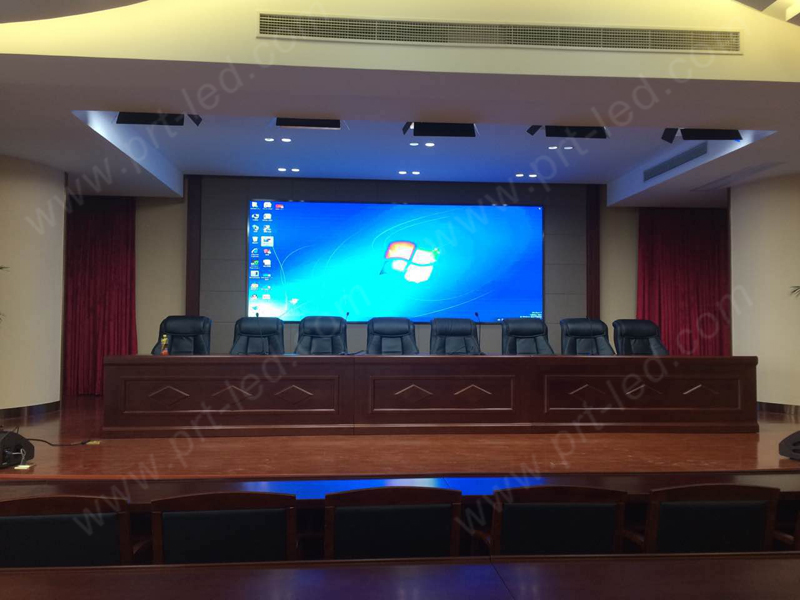

HD P3 Full Color LED display panel, vieo Wall with high gray scale and high contrast ratio,good uniformity, seamless spliced, perfect performance,most for indoor meeting room,studio,stage,event,show background screen

1. Black lamp body and SMT led encapsulation technology confirm the high brightness and wide view angle

2. Cabinet made with Aluminum material ensure light weight and good heat dissipation

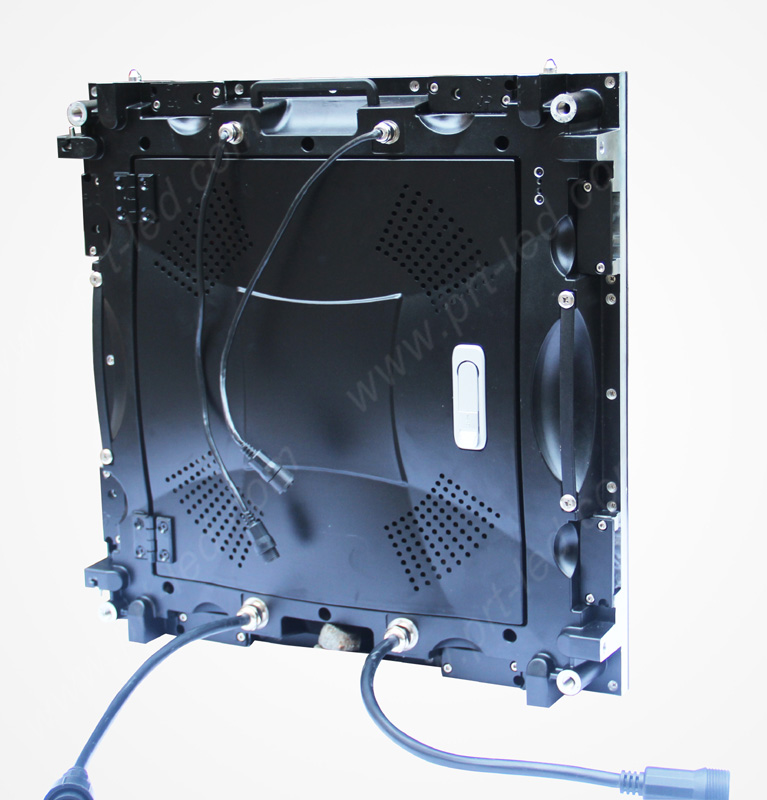

3. Small panel size of 480×480mm and with thickness of 60mm only,can be picked up by one hand

4. Packed with flight cases,keep good packing  and safe condition,convenient to move and transport

5. With fast locks and aviation plugs,easy to combine and quick to install and dismantle

6. Seamless splicing,high definition and good performance,

7.this cabinet also suit to indoor P3 HD led display



More pictures for reference:

Shenzhen Factory Video LED Display of Indoor P3 (advertising 480*480mm panel)
Shenzhen Factory Video LED Display of Indoor P3 (advertising 480*480mm panel)


Shenzhen Factory Video LED Display of Indoor P3 (advertising 480*480mm panel)

Shenzhen Factory Video LED Display of Indoor P3 (advertising 480*480mm panel)

Shenzhen Factory Video LED Display of Indoor P3 (advertising 480*480mm panel)


Shenzhen Factory Video LED Display of Indoor P3 (advertising 480*480mm panel)

Parameter for reference,more details and special request,please contact us!

P3 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 3mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 240mm x 240mm
Resolution of module 80x80
Size of cabinet 480mm x 480mm x 65mm
Resolution of cabinet 160 x 160
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 10KGS
Brightness >1200cd/sq.m
Density 111111dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 2-30M
Maximum power consumption 1000W/sq.m
Average power consumption 600W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
