P3
Video Display
1R,1G,1B
1/16 Scan
LED Video Display
IP31
768X768mm
192X192mm
SMD2121 Black
Flight Case or Wooden Case
Shenzhen
Full Color
3mm
111111dots/Sq.M
Win XP,Win 2000,Win7/8
Stage Performance, Advertising, Shopping Guide
CE, RoHS, CCC, FCC
Iron/Aluminum
64X64dots
PRT
8528591090

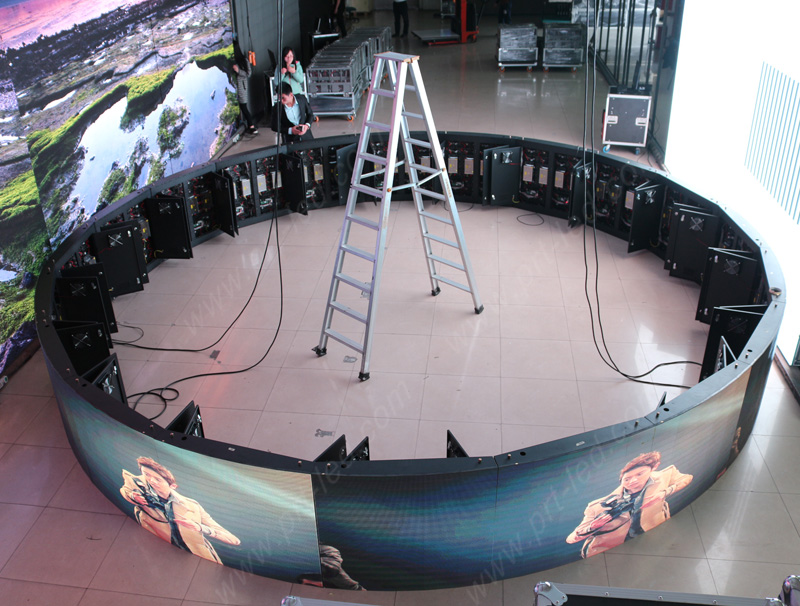

P3 led video display panel /video wall with Circular/Round shape for indoor advertsiing,
high definition,high contrast, good uniformity, good performance
Product Features:
1. SMD2121 black leds ensure the wide view angle,and high contrast, good performance
2. Steel Iron keep strong configuration,good stability,pulling resistance,shockproof, automatic heat dissipation, prolong the lifespan,
also can with aluminum material with light weight
3. Customized diameter to confirm cabinet size and arc angle
4.Easy to install and dismantle,save much time and labour cost
5.Seamless splicing,good uniformity,good performance
6.Large scale production, mature processing technology confirm the good and stability quality
Please see more pictures for your reference
| P3 SMD2121 Indoor full Color LED Screen Specification | ||||||
| Pixel pitch | 3mm | |||||
| Pixel Configuration | 1R1G1B | |||||
| LED component | SMD2121 black | |||||
| Size of module | 192mm x 192mm | |||||
| Resolution of module | 64x64dots | |||||
| Size of cabinet | 768mm x 768mm/ 576mm x 576mm x 150mm | |||||
| Resolution of cabinet | 256x256dots /192x192dots | |||||
| Material of Cabinet | Steel iron/Aluminum | |||||
| Weight of Cabinet | 25KGS/15KGS | |||||
| Brightness | >1200cd/sq.m | |||||
| Density | 111111dots/sq.m | |||||
| Best viewing angle | 140° /140° | |||||
| Pixel Configuration | 1R1G1B | |||||
| Best viewing distance | 3-50M | |||||
| Maximum power consumption | 1200W/sq.m | |||||
| Average power consumption | 640W/sq.m | |||||
| Driving method | 1/16 scan | |||||
| Control method | Synchronization | |||||
| Gray scale | 65536 | |||||
| Colors | 256*256*256 | |||||
| Color temperature | 3200-9300k | |||||
| Uniformity | 97% | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | -20ºC~+50ºC±10% | |||||
| Working humidity | 10% ~ 90% | |||||
| MTBF | 10,000 hours | |||||
| Frame frequence | 50/60Hz | |||||
| Refresh frequence | >3000Hz | |||||
| IP grade | IP31 | |||||
| Life Span | 100,000 hours | |||||
| Data transafer method | RJ45 | |||||
| Pratical standard | CCC TUV-CE ETL etc. | |||||
| Effectivce Communication Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM | |||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | |||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | |||||
