Outdoor Full Color Advertising LED Billboard of P6 SMD3535

Quantity:
  • P6-outdoor
  • IP65
  • 1R, 1G, 1B
  • 350W / m⊃2;
  • 1/8 Scan
  • Advertising, Stage Performance, Rental
  • SMD3535
  • 960X960mm
  • Steel Iron
  • Wooden Case or as Required
  • Shenzhen China
  • Full Color
  • 6mm
  • Video Display
  • 27777dots/Sq.M
  • LED Video Display
  • CE, RoHS, CCC
  • 192X192mm
  • 160X160dots
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
High Brightness P6 Outdoor LED Billboard with Full Color to outdoor display text, images,dynamic videos, good uniformity and high definition, made with waterproof iron cabinet for outdoor permanent install

Product Features:

1. SMD led encapsulation confirm wide view angle and good uniformity

2. Good waterproof IP65, can be used under any weather outdoor permanent

3. High pixel density, Long view distance, High definition, Good uniformity

4. Cables connected with aviation plugs, easy and quick to connect between cabinets

5. Cabinet design with good heat dissipation itself, with antirust protection,long life span>100000Hours

6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

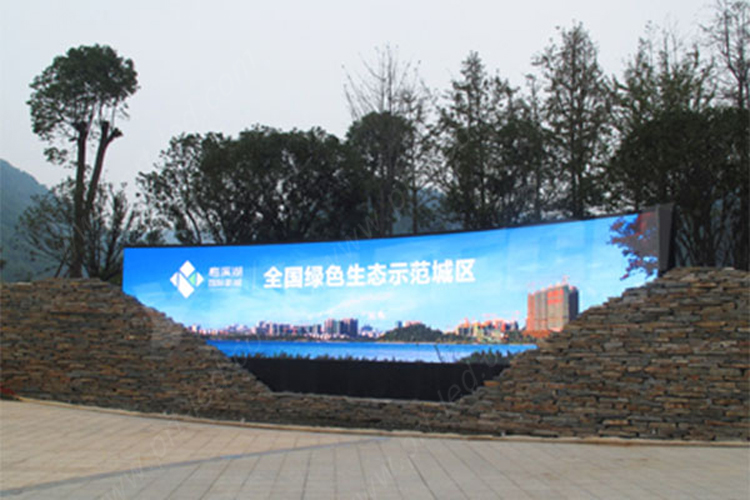

Outdoor Full Color Advertising LED Billboard of P6 SMD3535


Outdoor Full Color Advertising LED Billboard of P6 SMD3535

Outdoor Full Color Advertising LED Billboard of P6 SMD3535

Outdoor Full Color Advertising LED Billboard of P6 SMD3535
Outdoor Full Color Advertising LED Billboard of P6 SMD3535
Outdoor Full Color Advertising LED Billboard of P6 SMD3535



P6 SMD3535 Outdoor full Color LED Screen Specification
Pixel pitch 6mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 192mm x 192mm
Resolution of module  32 x32
Size of cabinet 768mm x768mmx150mm or 960mm x 960mm x 150mm
Resolution of cabinet 128x128/160x160
Material of Cabinet Iron/Aluminum
Weight of Cabinet 40KGS
Brightness >6000cd/sq.m
Density 27777dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 5-60M
Maximum power consumption 1000W/sq.m
Average power consumption 560W/sq.m
Driving method 1/8 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
