Outdoor Full Color Advertising LED Display with Slim Die-Cast Panel (960X960mm)

Quantity:
  • P8

  • IP65

  • 1R, 1G, 1B

  • 350W / m²

  • 1/5 Scan

  • Stage Performance, Advertising

  • SMD3535

  • 40X20dots

  • Over 6000nits

  • Wooden Case

  • Shenzhen China

  • Full Color

  • 8mm

  • Video Display

  • 15625dots Per Sqm

  • LED Video Display

  • CE, RoHS, CCC, FCC

  • 320X160mm

  • Die-Casting Aluminum and Magnesium

  • PRT

  • CE, FCC, Rohs

  • 8528591090

Full Color Outdoor P8 LED Display for advertising with slim thickness die-casting panel 960x960mm,high brightness, good uniformity, good stability and good waterproof, and reasonable cost

Product Features:

1. SMD led encapsulation technology confirm the wide view angle and good uniformity

2.High quality leds with high contrast,high brightness up 6500nits

3. Good Waterproof IP65, can be used under heavy rain weather and humid area

4. Strong die-casting aluminum and magnesium cabinets with fast lock and aviation plugs, convenient to install and dismantle,better for rental use and permanent fixed install

5. High quality, meet the request of international standard of CE, FCC,RoHs

6. Long life span >100000hours, and 3 year warranty

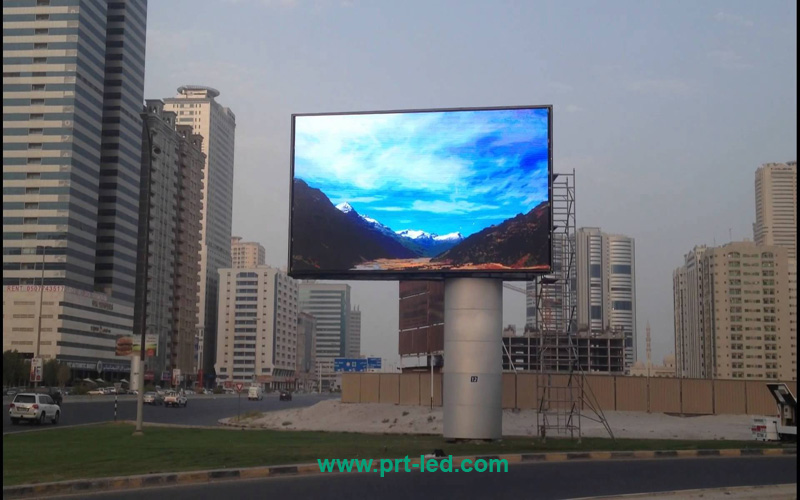

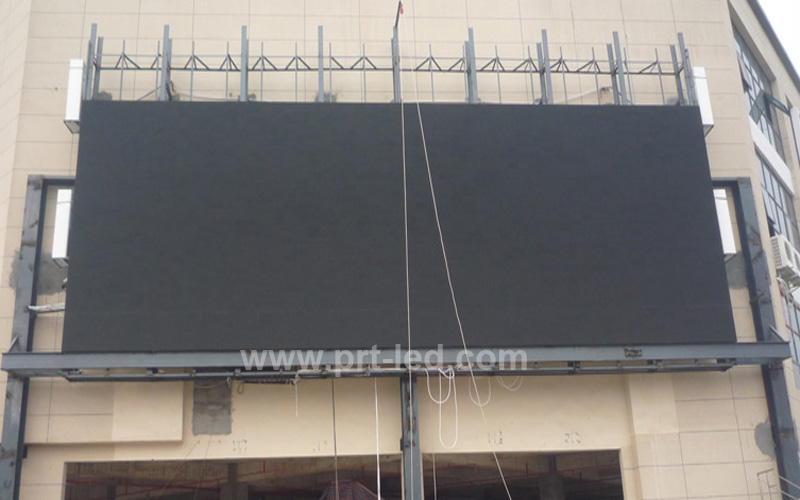

More pictures for reference:

Outdoor Full Color Advertising LED Display with Slim Die-Cast Panel (960X960mm)
Outdoor Full Color Advertising LED Display with Slim Die-Cast Panel (960X960mm)

Outdoor Full Color Advertising LED Display with Slim Die-Cast Panel (960X960mm)Outdoor Full Color Advertising LED Display with Slim Die-Cast Panel (960X960mm)Outdoor Full Color Advertising LED Display with Slim Die-Cast Panel (960X960mm)





Outdoor Full Color Advertising LED Display with Slim Die-Cast Panel (960X960mm)



P8 SMD Outdoor full Color LED Screen Specification
Pixel pitch 8mm
Size of module 320mm χ 160mm
Resolution of module 40 X 20
Size of cabinet 960mm X 960mm*150mm
Resolution of cabinet 120*120
Weight of Cabinet <30KGS
Brightness >6800cd/sq.m
Density 15625dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 8-80M
Maximum power consumption <800W/sq.m
Driving method 1/5 scan
Control method Synchronization
Gray scale 16 bits
Colors 16.7million
Color temperature 6500k
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
MTBF >10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Systems operating platform WINDOWS(WIN95,WIN2000,WINXP,WIN7), and interfaces for secondary development
