Outdoor P8 Digital Advertising Display Board with SMD3535 LEDs

Quantity:
  • P8 outdoor
  • IP65
  • 1R, 1G, 1B
  • 350W / m⊃2;
  • 1/4 Scan
  • Stage Performance, Advertising
  • SMD3535
  • 40X20dots
  • Iron/Aluminum
  • Flight Case
  • Shenzhen China
  • Full Color
  • 8mm
  • Video Display
  • 15625dots/ Sqm
  • LED Video Display
  • CE, RoHS, CCC, FCC
  • 320X160mm
  • 960X960mm
  • PRT
  • CE, FCC, Rohs
  • 8528591090
Full Color Outdoor P8 LED Display for advertising with high brightness, good uniformity, good stability and good waterproof, is sold very well on the market for good display performance and reasonable cost.

Product Features:

1. SMD led encapsulation technology confirm the wide view angle and good uniformity

2.High quality leds with black body with high contrast,high brightness up to 7500nits

3. Good Waterproof IP65, can be used under heavy rain weather and humid area

4. Stability Iron cabinets for fixed installation, with fast lock and aviation plugs, conveninet to install and dismantle

5. High quality, meet the request of international standard of CE, FCC,RoHs

6. Long life span >100000hours, and 3 year warranty

More pictures for reference:

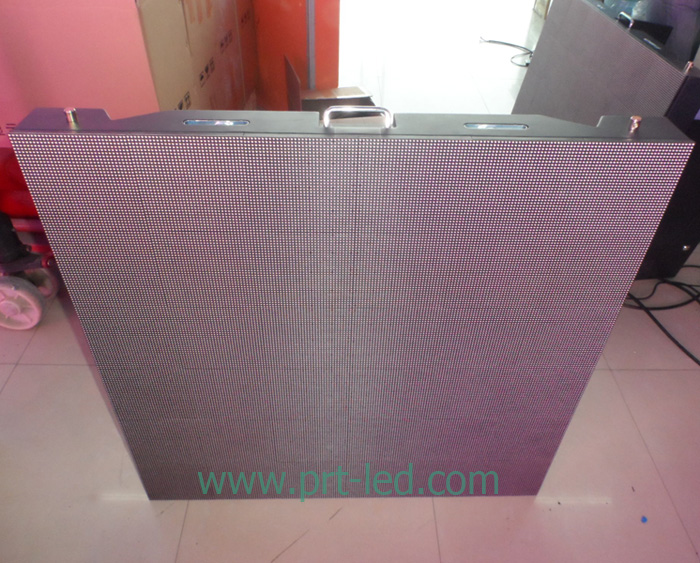

Outdoor P8 Digital Advertising Display Board with SMD3535 LEDs

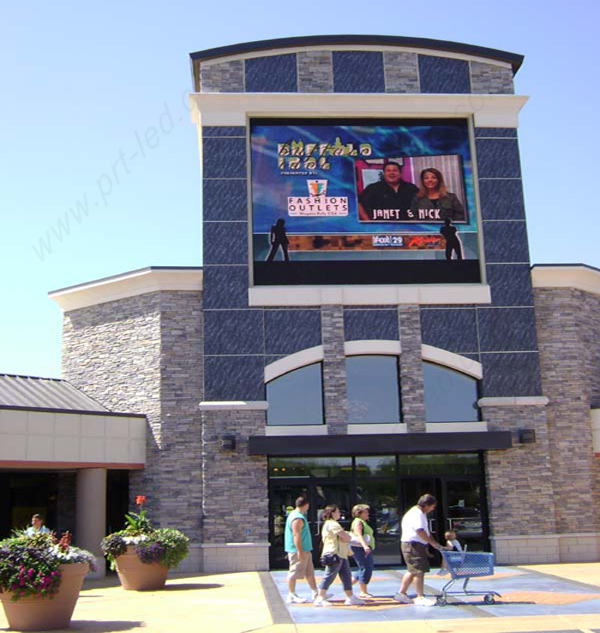

Outdoor P8 Digital Advertising Display Board with SMD3535 LEDs


Outdoor P8 Digital Advertising Display Board with SMD3535 LEDs
Outdoor P8 Digital Advertising Display Board with SMD3535 LEDs

Outdoor P8 Digital Advertising Display Board with SMD3535 LEDs



P8 Outdoor full Color LED Screen Specification
Pixel pitch 8mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 320mm x 160mm
Resolution of module 32x16
Size of cabinet 960mm x 960mm x 150mm
Resolution of cabinet 120x120
Material of Cabinet Steel Iron/Aluminum
Weight of Cabinet <45KGS
Brightness >6500cd/sq.m
Density 15625dots/sq.m
Best viewing angle 140 /140
Best viewing distance 8-100M
Maximum power consumption <800W/sq.m
Average power consumption <300W/sq.m
Driving method 1/5 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
