SMD3535 P10mm LED Outdoor Panels for Advertising with Size 960*960mm/1280*960mm

Quantity:
  • P10mm
  • IP65
  • 1R, 1G, 1B
  • 350W / m⊃2;
  • 1/2 Scan
  • Advertising, Stage Performance, Rental
  • SMD3535
  • 32X16dots
  • PRT
  • CE, FCC. ROHS, 3C
  • 8528591090
  • Full Color
  • 10mm
  • Video Display
  • 10000 dot / m⊃2;
  • LED Video Display
  • CE, RoHS, CCC
  • 320X160mm
  • >7000nits
  • Wooden Case or as Required
  • Shenzhen China

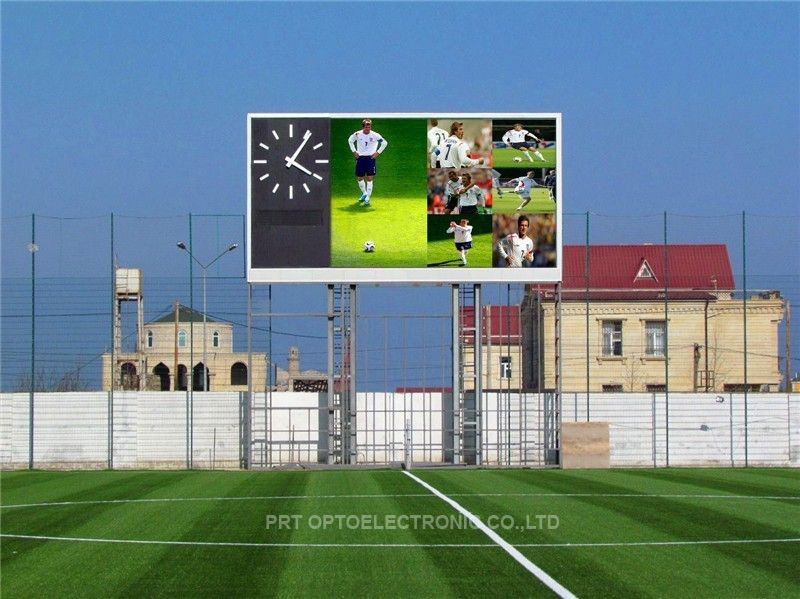

P10 SMD3535 outdoor full color led billboard fixed on the wall, on the top of building,by roadside for commercial advertising,traffice sign,sport broadcasting,public events,with high definition,high brightness for display, with CE,Rohs,FCC 3C, high quality, 3 years warranty


Product Features:

1.SMD led encapsulation confirm wide view angle and good uniformity

2.Good waterproof IP65, long life span>100000hours

3.High brightness up to 6000nits, can be seen from far away 100M

4. With fast locks and aviation plugs, easy and quick to assemble without tools in short time

5. Low power consumption, good heat dissipation, low noise created,

6. Can be controlled by PC, 3G/wifi remote with asynchronous system,change the dispay content as your need

SMD3535 P10mm LED Outdoor Panels for Advertising with Size 960*960mm/1280*960mmSMD3535 P10mm LED Outdoor Panels for Advertising with Size 960*960mm/1280*960mm
SMD3535 P10mm LED Outdoor Panels for Advertising with Size 960*960mm/1280*960mm

SMD3535 P10mm LED Outdoor Panels for Advertising with Size 960*960mm/1280*960mm
SMD3535 P10mm LED Outdoor Panels for Advertising with Size 960*960mm/1280*960mm



P10 Outdoor full Color LED Screen Specification
Pixel pitch 10mm
Pixel Configuration 1R1G1B
LED component SMD3535 black
Size of module 320mm x 160mm
Resolution of module 32x16
Size of cabinet 960mmx 960mm /1280mm x 960mm
Resolution of cabinet 96x96 dots / 128 x 96dots
Material of Cabinet Iron or aluminum material  with back doors
Weight of Cabinet <50KGS
Brightness >7500cd/m2
Density 10000dots/m2
Best viewing angle 140 /14
Best viewing distance 10-150M
Maximum power consumption <800W/m2
Average power consumption <350W/m2
Driving method 1/2 scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
