Slim Thickness Die-Casting LED Display Panel for Outdoor Advertising

Quantity:



Inquire Add to Basket

Model NO.:
P8
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Average Power Consumption:
350W / m²
Scanning Mode:
1/5 Scan
Application:
Stage Performance, Advertising
LED Type:
SMD3535
Module Resolution:
40X20dots
Brightness:
Over 6000nits
Transport Package:
Wooden Case
Origin:
Shenzhen China
Tube Chip Color:
Full Color
Pixel Pitch:
8mm
Display Function:
Video Display
Pixel Density:
15625dots Per Sqm
Display Type:
LED Video Display
Certification:
CE, RoHS, CCC, FCC
Module Size:
320X160mm
Cabinet Material:
Die-Casting Aluminum and Magnesium
Trademark:
PRT
Specification:
CE, FCC, Rohs
HS Code:
8528591090

Product Description

Full Color Outdoor P8 LED Display panel for advertising with slim thickness die-casting, high brightness, good uniformity, good stability and good waterproof, and reasonable cost

Product Features:

1. SMD led encapsulation technology confirm the wide view angle and good uniformity

2. High quality leds with high contrast,high brightness up 6000nits

3. Good Waterproof IP65, can be used under heavy rain weather and humid area

4. Strong die-casting aluminum and magnesium cabinets with slim thickness only 84mm,
fast lock and aviation plugs, convenient to install and dismantle,better for rental use and permanent fixed install

5. High quality, meet the request of international standard of CE, FCC,RoHs

6. Long life span >100000hours, and 3 year warranty

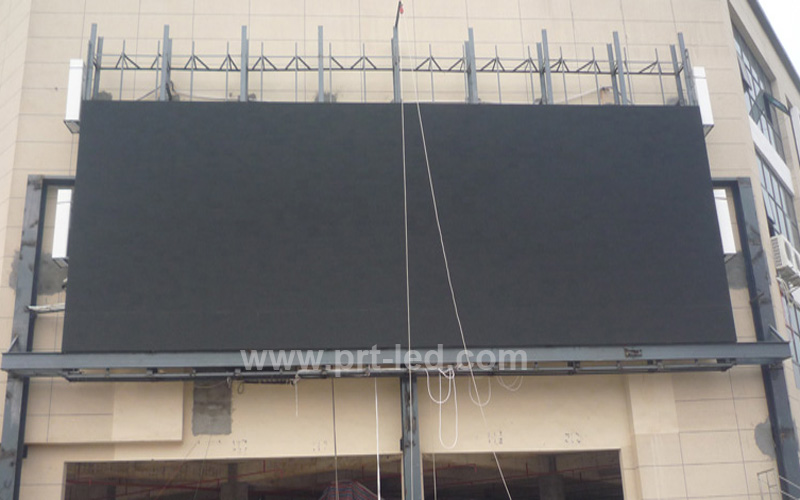

More pictures for reference:

Slim Thickness Die-Casting LED Display Panel for Outdoor Advertising

Slim Thickness Die-Casting LED Display Panel for Outdoor Advertising

P8 SMD Outdoor full Color LED Screen Specification
Pixel pitch			8mm
Size of module			320mm χ 160mm
Resolution of module			40 X 20
Size of cabinet			960mm X 960mm*100mm
Resolution of cabinet			120*120
Weight of Cabinet			<30KGS
Brightness			>6800cd/sq.m
Density			15625dots/sq.m
Best viewing angle			140 /140
Pixel Configuration			1R1G1B
Best viewing distance			8-80M
Maximum power consumption			<800W/sq.m
Driving method			1/5 scan
Control method			Synchronization
Gray scale			16 bits
Colors			16.7million
Color temperature			6500k
Working voltage			AC220V/110V±10%
Working temperature			-20ºC~+50ºC±10%
MTBF			>10,000 hours
Frame frequence			50/60Hz
Refresh frequence			>1800Hz
IP grade			IP65
Life Span			100,000 hours
Data transafer method			RJ45
Effectivce Communication Distance(without relay)			Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; Single-mode optic fiber: 10KM
Systems operating platform			WINDOWS(WIN95,WIN2000,WINXP,WIN7), and interfaces for secondary development
