Waterproof IP65 SMD3535 P8 Outdoor LED Video Display for Message Board

Quantity:
  • P8
  • IP65
  • 1R, 1G, 1B
  • 350W / m⊃2;
  • 1/5scan
  • Stage Performance, Advertising
  • SMD3535
  • 960X960mm
  • PRT
  • CE, FCC, Rohs
  • 8528591090
  • Full Color
  • 8mm
  • Video Display
  • 15625dots /Sqm
  • LED Video Display
  • CE, RoHS, CCC, FCC
  • 320X160mm
  • Iron or Aluminum
  • Flight Case
  • Shenzhen China
SMD3535 P8 Outdoor LED Video Display with high brightness and good waterproof,for outdoor advertising,good performance and competitive cost

Product Features:

1. SMD3535 led encapsulation confirm the wide view angle and good uniformity

2. Slim thickness module with light weight,lower power consumption,energy-saving design

3. High resolution,high definition,good display vision

4. Good Waterproof IP65, suit for outdoor different weather condition

5. The cabinet size can be customized according to different screen sizes

6. Iron or Aluminum cabinets with stable configuration design,better for permanent fix install

7. Update display content with computer by synchronous system,also by asynchronous system( with 3G,4G or USB)

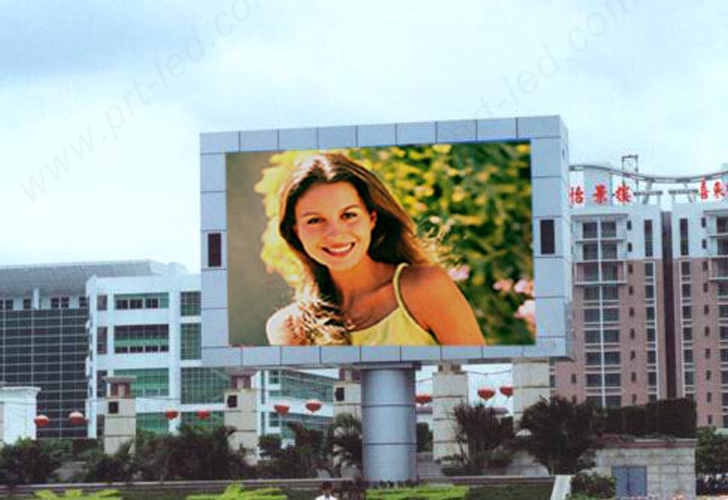

More pictures of outdoor P8 as following:
Waterproof IP65 SMD3535 P8 Outdoor LED Video Display for Message BoardWaterproof IP65 SMD3535 P8 Outdoor LED Video Display for Message Board

Waterproof IP65 SMD3535 P8 Outdoor LED Video Display for Message Board Waterproof IP65 SMD3535 P8 Outdoor LED Video Display for Message Board
Waterproof IP65 SMD3535 P8 Outdoor LED Video Display for Message Board Waterproof IP65 SMD3535 P8 Outdoor LED Video Display for Message Board


Parameter for reference,please contact us for details!
P8 Outdoor full Color LED Screen Specification
Pixel pitch 8mm
Pixel Configuration 1R1G1B
LED component SMD3535
Size of module 320mm x 160mm
Resolution of module 40x20
Size of cabinet 960mm x 960mm x 150mm
Resolution of cabinet 120 x120dots
Material of Cabinet Iron/Aluminum
Weight of Cabinet 45KGS
Brightness >6500cd/sq.m
Density 15625dots/sq.m
Best viewing angle 140 /140
Best viewing distance 6-100M
Maximum power consumption <1000W/sq.m
Average power consumption <300W/sq.m
Driving method 1/5 scan
Control method Synchronization
Gray scale 65536
Colors 256 x 256 x 256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1800Hz
IP grade IP65
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
