HD Full Color Video LED Sign (P4 indoor)

  • P4-indoor

  • Video Display

  • 1R,1G,1B

  • 1/16 Scan

  • LED Video Display

  • IP43

  • Black 2121

  • 64X32 Dots

  • PRT

  • CE, RoHs, FCC, CCC

  • 8528591090

  • Full Color

  • 4mm

  • 62500 Dots/Sqm

  • Win XP,Win 2000,Win7/8

  • Stage Performance, Advertising, Shopping Guide, Indoor Rental

  • CE, RoHS, CCC, FCC

  • 256X128mm

  • 512X768mm

  • Wooden Case

  • Shenzhen China

P4 Indoor full color  LED Sign,led video wall for permanent fixed install or rental use

1.Black led lamp body keep high contrast rate and hight gray scale

2.SMD led encapsulation confirm wide view angle and good uniformity

3.High resolution for short view distance and high definition, high refresh rate, no strobe,
friendly to our eyes

5.Dot-to-Dot maintenance, rear access

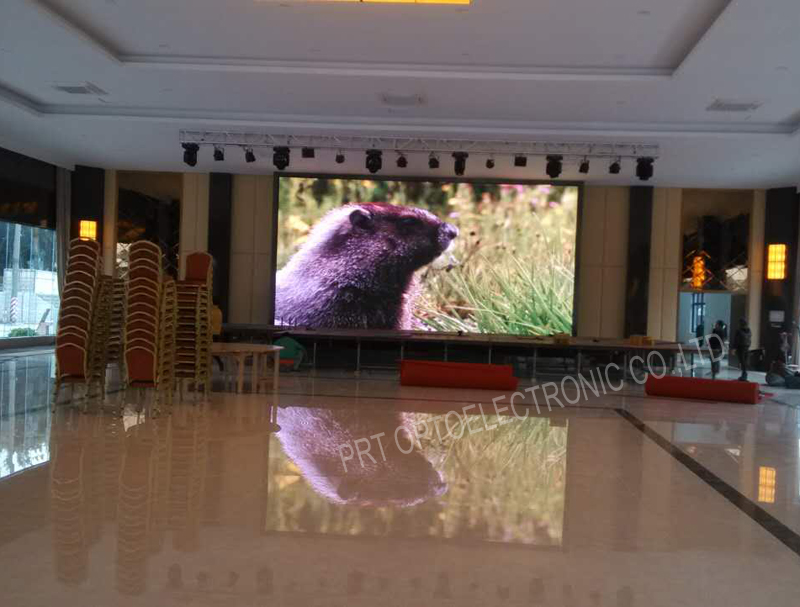

6.Can be fixed or suspended, good for stage background screen,shopping mall display,meeting room, message board etc.

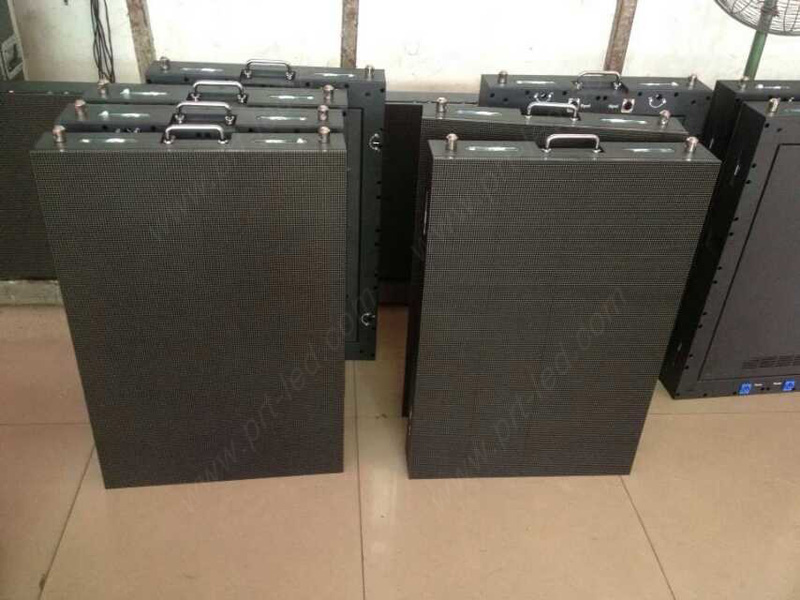

HD Full Color Video LED Sign (P4 indoor)
HD Full Color Video LED Sign (P4 indoor)HD Full Color Video LED Sign (P4 indoor)
HD Full Color Video LED Sign (P4 indoor)HD Full Color Video LED Sign (P4 indoor)
HD Full Color Video LED Sign (P4 indoor)

P4 SMD2121 Indoor full Color LED Screen Specification
Pixel pitch 4mm
Pixel Configuration 1R1G1B
LED component SMD2121 black
Size of module 256mm x 128mm
Resolution of module 64x32
Size of cabinet 512mm x 768mm x 100mm
Resolution of cabinet 128x192
Material of Cabinet Iron/Aluminum
Weight of Cabinet 17KGS
Brightness >1500cd/sq.m
Density 62500dots/sq.m
Best viewing angle 140 /140
Pixel Configuration 1R1G1B
Best viewing distance 3-50M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/16 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
