HD P2.5 Full Color LED Video Wall for Indoor Display Screen

Quantity:
  • P2.5-400x300
  • Video Display
  • 1R,1G,1B
  • 1/30
  • LED Video Display
  • 31
  • Black
  • 200X300mm
  • PRT
  • CE, RoHs, FCC, CCC
  • 8528591090
  • Full Color
  • 2.5mm
  • 160000 Dots/Sqm
  • Win XP,Win 2000
  • Stage Performance, Advertising, Shopping Guide, Meeting Room
  • CE, RoHS, CCC, FCC
  • SMD1010 Black
  • 400X300mm
  • Flight Case
  • Shenzhen China
HD P2.5 Full Color LED Video Wall for Indoor Rental or fixed permanent, with die-casting aluminum panel, strong durable and light weight, widely used for meeting room, video studio,background screen etc.


Product Features:

1.High resolution,small pixel pitch,wide view angle

2.LED Encapsulation of  SMD1010 black body lamps ensure high contrast ratio and high gray scale

3.Small pixel pitch with high resolution,high definition and good uniformity

4.Made with Dia casting Aluminum cabinets, super slim, light weight

5.Good hot dissipation, beautiful looking, easy mounting without gap

6.Hign brightness and adjustable, short response time, dot to dot maintenance

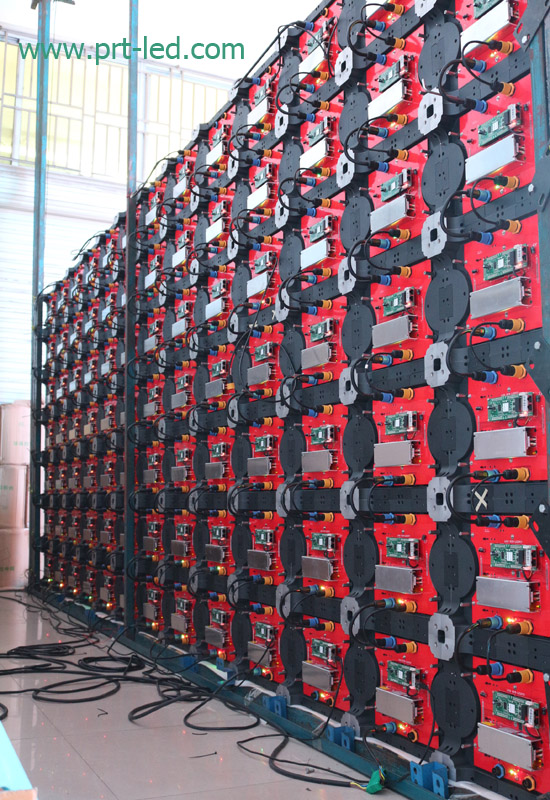

Please see more pictures for your checking:
HD P2.5 Full Color LED Video Wall for Indoor Display Screen


HD P2.5 Full Color LED Video Wall for Indoor Display Screen
HD P2.5 Full Color LED Video Wall for Indoor Display Screen

HD P2.5 Full Color LED Video Wall for Indoor Display Screen
HD P2.5 Full Color LED Video Wall for Indoor Display Screen
HD P2.5 Full Color LED Video Wall for Indoor Display Screen


P2.5 SMD1010 Indoor full Color LED Screen Specification
Pixel pitch 2.5mm
Pixel Configuration 1R1G1B
LED component SMD1010 black
Size of module 200mm x 300mm
Resolution of module 80x120
Size of cabinet 400mm x 300mm x 65mm
Resolution of cabinet 160x120
Material of Cabinet Die-casting Aluminum
Weight of Cabinet 6.5KGS
Brightness <1200cd/sq.m
Density 160000dots/sq.m
Best viewing angle 160 /140
Pixel Configuration 1R1G1B
Best viewing distance 2-30M
Maximum power consumption 1200W/sq.m
Average power consumption 640W/sq.m
Driving method 1/30 scan
Control method Synchronization
Gray scale 65536
Colors 256*256*256
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >3000Hz
IP grade IP31
Life Span 100,000 hours
Data transafer method RJ45
Pratical standard CCC  TUV-CE  ETL etc.
Effectivce Communication
Distance(without relay)
Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
