P7.81-15.64
PRT
8528591090

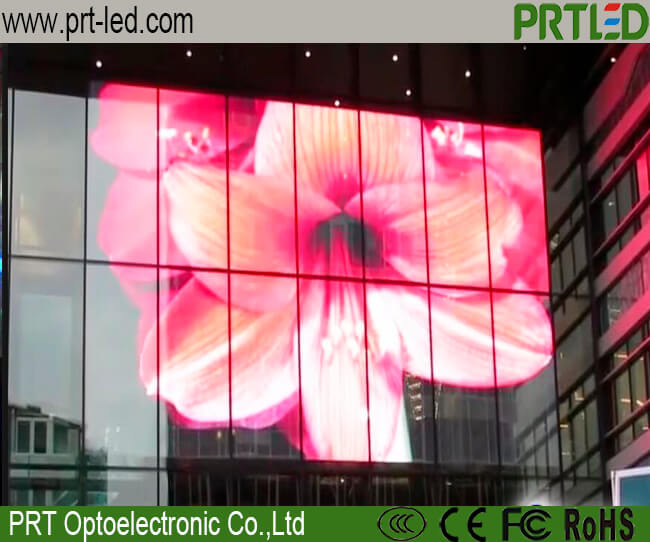

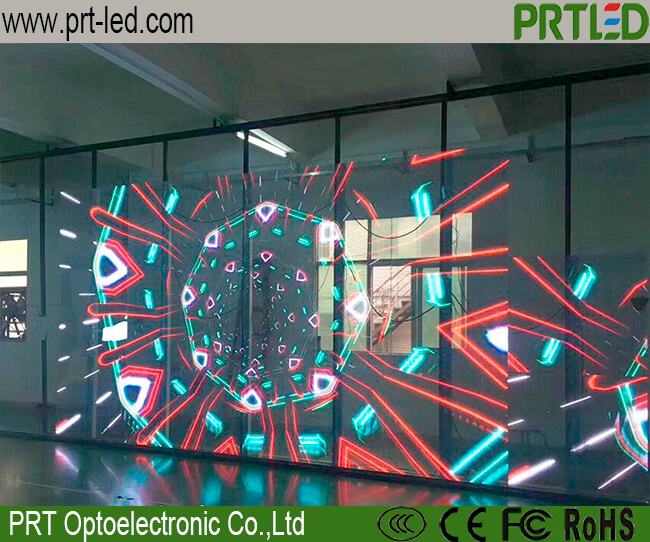

Glass transparent window glass video led panel with panel size 500x1000mm or 1000x1000mm,
for shop window,building wall,with high transparent up to 75%.
Product Features:
1. Made with high resolution and high quality led lamps,good display vision
2. Super thin cabinets, less than 80 mm thickness at most, and light weight,only with 15kgs per square meter
3. With panel sizes of 500x1000mm or 1000x1000mm,easy and convient to combine different screen size,also accept customized
4. High transparancy for good visual effection from outer
5. High refresh rate up 1920Hz,and high brightness up to 4500nits,suit for outdoor higher brightness
6. Packed with wooden case or flight case, convenient to be collected and move
P7.82-15.64 SMD Transparent LED Glass Screen Specification | |
Pixel pitch | 7.82mm x 15.64mm |
Pixel Configuration | 1R1G1B |
LED component | SMD2727 |
Size of cabinet | 500mm x 1000mm /1000mm x1000 mm |
Thickness | 80mm |
Resolution of cabinet | 64 x64 dots/ 128 x 64dots |
Material of Cabinet | Aluminum + PC |
Weight of Cabinet | 15 Kg/sq.m |
Brightness | > 1500cd/sq.m, 4000cd/sq.m |
Transparency | 75 % |
Density | 8192 dots/sq.m |
Best viewing angle | 140º /140º |
Pixel Configuration | 1R1G1B |
Best viewing distance | 10-100M |
Maximum power consumption | <600W/sq.m |
Average power consumption | <200W/sq.m |
Driving method | 1/8 scan, 1/2 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC110V~240V±10% |
Working temperature | —20℃~+50℃±10% |
Working humidity | 10% ~ 90% |
MTBF | 6500 hours |
Frame frequence | 47~63Hz |
Refresh frequence | >1920Hz |
Installation method | Hanging or stacking |
IP grade | IP45 |
Life Span | >50,000 hours |
Data transafer method | RJ45/DVI |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
