P25
PRT
8528591090
High transmission Full Color Transparent LED Billboard for outdoor indoor advertisement
PRODUCT FEATURES
1. Made with panel sizes 500*1000mm and 1000*1000mm, convenient for different screen sizes
2. Super slim thickness,the thinnest is only 80 mm, and light weight with 15kgs per square meter

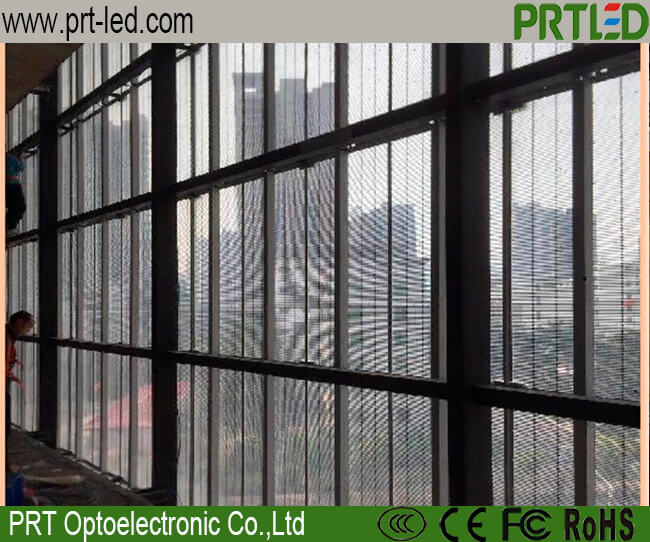

3. Fixed directly on the glass curtain wall,No need for steel frame structure, saving a lot of installation and maintenance costs.Because the display background is transparent, the advertising picture can give people the feeling of suspension on the glass curtain wall, which has a good advertising effect and artistic effect.
4. High transparency, up 90 %,good light transmission,ensures the lighting requirements and perspective range of lighting structures such as floors, glass facades and Windows, and ensures the original lighting perspective function of glass curtain wall.
5. Easy maintenance/energy saving and environmental protection,
quick indoor maintenance, quick and safe, saving manpower and material resources.
Traditional cooling systems and air conditioners are not required to dissipate heat, which is 35% more energy efficient than ordinary LED screens.
6. Screen body indoor installation, easy to maintain, more safe;Outdoor viewing, do not need architectural design institute audit, or easily through the audit;

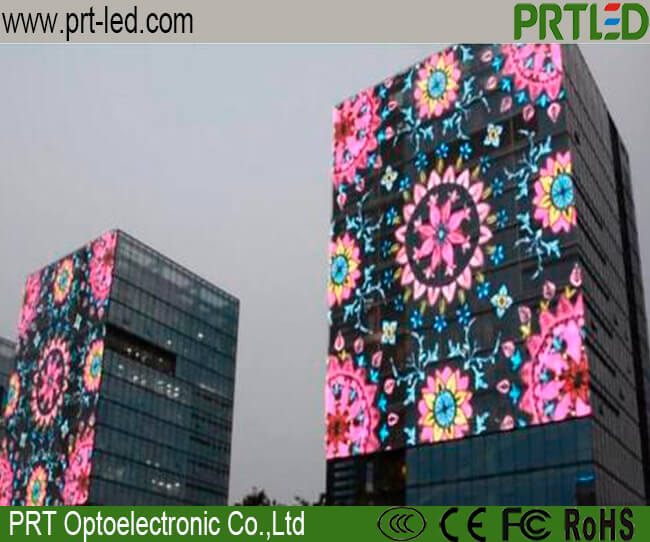

7. Application: widely used for shopmall window, building wall, stage background wall
P25 SMD Transparent LED Glass Screen Specification | |
Pixel pitch | 25 mm x 25 mm |
Pixel Configuration | 1R1G1B |
LED component | SMD3535 |
Size of cabinet | 500mm x 1000mm /1000mm x1000 mm |
Thickness | 80mm |
Resolution of cabinet | 20 x 40 dots/ 40 x 40 dots |
Material of Cabinet | Aluminum + PC |
Weight of Cabinet | 15 Kg/sq.m |
Brightness | > 3000cd/sq.m |
Transparency | 90 % |
Density | 1600 dots/sq.m |
Best viewing angle | 140º /140º |
Pixel Configuration | 1R1G1B |
Best viewing distance | 30 -100M |
Maximum power consumption | <600W/sq.m |
Average power consumption | <150W/sq.m |
Driving method | static scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC110V~240V±10% |
Working temperature | —20℃~+50℃±10% |
Working humidity | 10% ~ 90% |
MTBF | 6500 hours |
Frame frequence | 47~63Hz |
Refresh frequence | >1080Hz |
Installation method | Hanging or stacking |
IP grade | IP45 |
Life Span | >50,000 hours |
Data transafer method | RJ45/DVI |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
