P3.91-7.81
PRT
P3.91-7.8

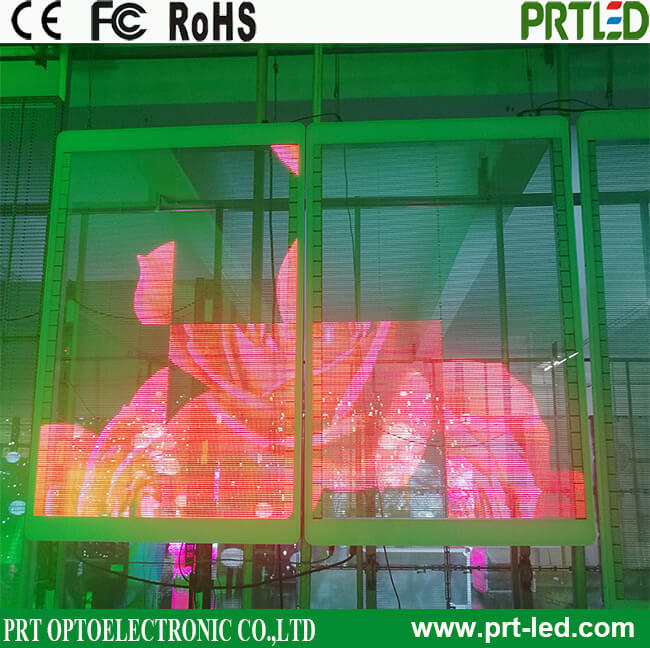

Full Color P3.9 P7.8 Transparent led display panel for garment/jewelery shop window advertising
PRODUCT FEATURES
1. Made with panel size 700*1000mm,1000 x 1500mm or 1000x1750mm,also can be customized
2. Super slim thickness,the most thickness is only 65 mm
3. Lightweight, only with 15 kgs/sq.m
4. High transparency, up 70%,good light transmission
5. Ultra power saving, only with 1/3 power consumption of traditional screen
6. Strong and good transparent PC material with long life span
7. Controlled with wifi,4G/3G or USB,also can update display contents through internet with group control
8. Seamless spliced with evenness outlooking
9. Application: widely used for shopmall window,station,airport etc
P3.9 SMD1921 Transparent LED Glass Screen Specification | |
Pixel pitch | 3.91mm x 7.81mm |
Pixel Configuration | 1R1G1B |
LED component | SMD1921 |
Size of module | 500mm x 62.5mm |
Resolution of module | 128 x 8dots |
Size of panel | 1000mm x 1500mm /1000mm x1750 mm |
Thickness | 65mm |
Resolution of cabinet | 256x192 dots/ 256x224dots |
Material of Cabinet | Aluminum + PC |
Weight of Cabinet | 50 Kg/75kgs |
Brightness | >2500cd/sq.m, 3500cd/sq.m |
Transparency | >75% |
Density | 32768dots/sq.m |
Best viewing angle | 140 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 5-100M |
Maximum power consumption | 450W/sq.m |
Average power consumption | 200W/sq.m |
Driving method | 1/16 scan, 1/8 scan |
Control method | Asynchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC110V~240V±10% |
Working temperature | —20℃~+50℃±10% |
Working humidity | 10％ ～ 90％ |
MTBF | 10,000 hours |
Frame frequence | 47~63Hz |
Refresh frequence | >1920Hz |
Installation method | Hanging or stacking |
IP grade | IP45 |
Life Span | >50,000 hours |
Data transafer method | RJ45/DVI |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
