P3.91
PRT
P3.91-7.8

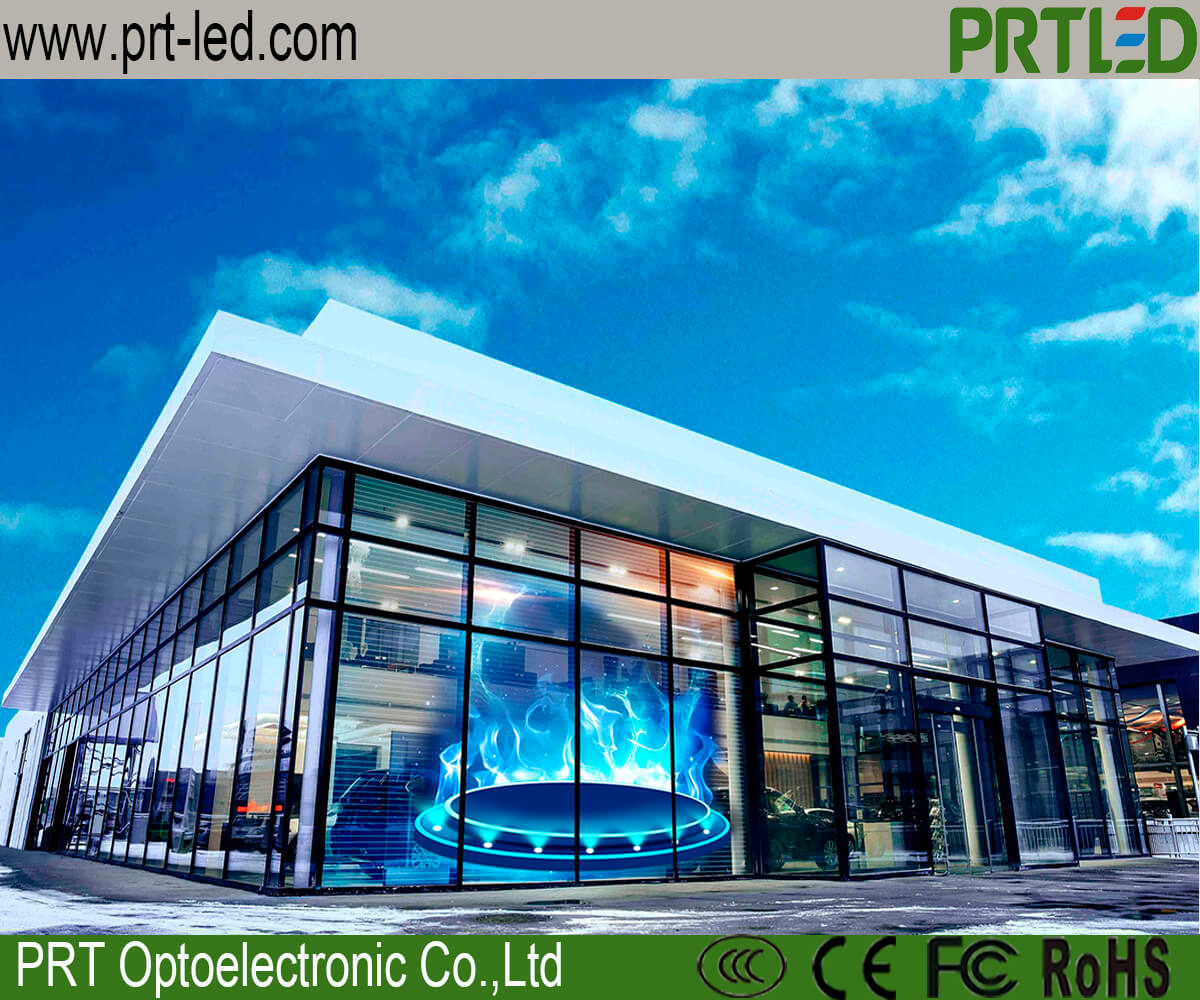

Full Color P3.9 P7.8 Transparent led display,glass screen for shopping window,building wall advertising
PRODUCT FEATURES
1. Made with panel size 500*1000mm and 1000 x 1000mm,convenient for different screen sizes
2. Super slim thickness,the thinnest is only 9mm for the module,the most thickness is 65 mm for panel
3. Lightweight, only with 15 kgs/sq.m
4. High transparency, up 65%,good light transmission
5. Ultra power saving, only with 1/3 power consumption of traditional screen
6. Strong and good transparent PC material with long life span
7. Fast installation with U-shaped kayser,easy connecting between panels
8. Seamless splice without peripheral structure
9. Application: widely used for shopmall window, stage background,clear led video wall
P3.9 SMD1921 Transparent LED Glass Screen Specification | |
Pixel pitch | 3.91mm x 7.81mm |
Pixel Configuration | 1R1G1B |
LED component | SMD1921 |
Size of module | 250mm x 250mm |
Resolution of module | 64x32dots |
Size of cabinet | 500mm x 1000mm /1000mm x500 mm |
Thickness | 80mm |
Resolution of cabinet | 128x128 dots |
Material of Cabinet | Aluminum + PC |
Weight of Cabinet | 7.5 Kg/cabinet |
Brightness | >2500cd/sq.m, 4500cd/sq.m |
Transparency | 65% |
Density | 32768dots/sq.m |
Best viewing angle | 140 /140 |
Pixel Configuration | 1R1G1B |
Best viewing distance | 5-100M |
Maximum power consumption | 450W/sq.m |
Average power consumption | 420W/sq.m |
Driving method | 1/16 scan, 1/8 scan |
Control method | Synchronization |
Gray scale | 65536 |
Colors | 256*256*256 |
Color temperature | 3200-9300k |
Uniformity | 97% |
Working voltage | AC110V~240V±10% |
Working temperature | —20℃~+50℃±10% |
Working humidity | 10％ ～ 90％ |
MTBF | 10,000 hours |
Frame frequence | 47~63Hz |
Refresh frequence | >2880Hz |
Installation method | Hanging or stacking |
IP grade | IP45 |
Life Span | >50,000 hours |
Data transafer method | RJ45/DVI |
Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
